ADS8326IBDRBT - Texas Instruments

Description: 16-Bit, Pseudo Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC

Download ADS8326IBDRBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

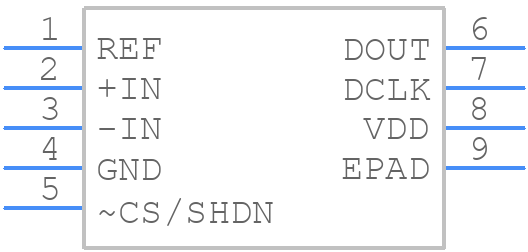

ADS8326IBDRBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8326IBDRBT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008B
click to zoom
3D Models
ADS8326IBDRBT - Texas Instruments - 3D model - Small Outline No-lead - DRB0008B
click to zoom

ADS8326IBDRBT Details

  • Manufacturer Part Number:

    ADS8326IBDRBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    666.7 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8326IBDRBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8326IBDRBT evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure proper operation and minimize noise and interference.
  • The ADS8326IBDRBT outputs 16-bit data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. You can use a SPI or I2C interface to communicate with the device. Make sure to follow the timing diagrams and protocol specified in the datasheet.
  • The POR timing is not explicitly stated in the datasheet. According to Texas Instruments, the POR timing is typically around 10 ms, but it can vary depending on the specific application and power supply conditions. It's recommended to add an external POR circuit or use a microcontroller to ensure a clean power-on reset.
  • Yes, the ADS8326IBDRBT can be used in a multi-channel application. However, you'll need to ensure that each device has its own separate analog input and reference voltage. You may also need to add additional circuitry to handle channel selection and multiplexing.
  • The ADS8326IBDRBT does not require calibration. It's a ratiometric ADC, which means that the output code is proportional to the input voltage and the reference voltage. However, you may need to perform system-level calibration depending on your specific application requirements.
