Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
The ADS8326IDRBT has a built-in POR circuit that resets the device when the power supply voltage rises above 1.5V. To ensure proper operation, the power supply voltage should be ramped up slowly (less than 10ms) and the digital interface should be held in a reset state until the power supply voltage reaches 2.7V. The recommended power-up sequence is to apply the power supply voltage, then the analog input voltage, and finally the digital interface signals.
The maximum sampling rate of the ADS8326IDRBT is 250kSPS. However, the device's power consumption increases with the sampling rate. At 250kSPS, the device consumes around 15mW, while at lower sampling rates (e.g. 10kSPS), the power consumption is around 5mW.
The ADS8326IDRBT has an internal calibration circuit that can be used to calibrate the device. The recommended calibration procedure involves applying a known input voltage, reading the output code, and adjusting the internal calibration registers to achieve the desired accuracy. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
The ADS8326IDRBT's internal reference voltage has a tolerance of ±1.5% and can be affected by temperature and power supply voltage variations. If a higher accuracy is required, an external reference voltage can be used. The external reference voltage should be connected to the REF pin and should be within the range of 2.4V to 2.7V.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8326IDRBT Overview

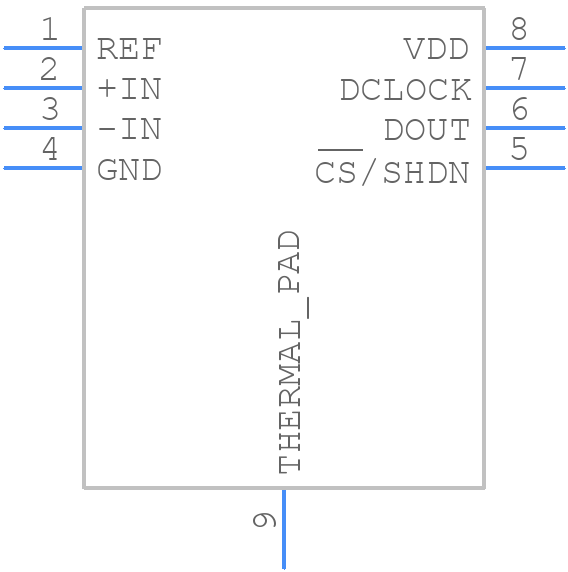

Use the download button to access the ADS8326IDRBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
