Texas Instruments provides a layout and routing guide in the application note SLAA382, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces.
The ADS8327IPW has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing specific values to the calibration registers, and then using the internal calibration circuit to adjust the offset and gain of the ADC. The calibration procedure is described in the datasheet and in the application note SLAA383.
The maximum sampling rate of the ADS8327IPW is 100 kSPS. The power consumption of the device increases with the sampling rate, and can be estimated using the formula provided in the datasheet. At 100 kSPS, the power consumption is typically around 15 mW.
The ADS8327IPW can be interfaced with a microcontroller using the SPI or I2C communication protocols. The recommended protocol is SPI, as it provides faster data transfer rates and is more widely supported by microcontrollers. The datasheet provides detailed information on the communication protocols and the required pin connections.
Common sources of error in the ADS8327IPW include noise, offset voltage, and gain errors. These errors can be minimized by using proper layout and routing, filtering the analog input signals, and calibrating the device regularly. Additionally, the ADS8327IPW has built-in error correction mechanisms, such as the internal offset correction circuit, which can help to reduce errors.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8327IPW Overview

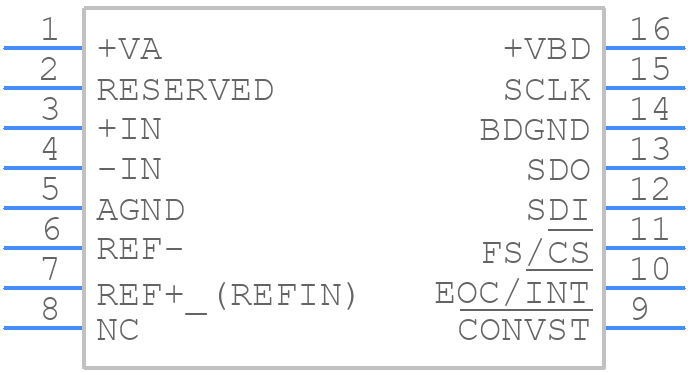

Use the download button to access the ADS8327IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
