- Part Number ADS8332IBRGER
- Manufacturer Texas Instruments
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P400X400X100-25N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADS8332IBRGER Details
-
Manufacturer Part Number:
ADS8332IBRGER
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
HVQCCN-24
-
Pin Count:
24
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
ADS8332IBRGER Frequently Asked Questions (FAQs)
-
The recommended layout and routing for the ADS8332IBRGER involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To optimize the performance of the ADS8332IBRGER in noisy environments, it is recommended to use a low-pass filter at the input, use a shielded cable for the analog input, and use a common-mode choke to reduce electromagnetic interference (EMI). Additionally, using a low-noise power supply and minimizing the distance between the ADC and the analog input can also help to improve performance.
-
The maximum sampling rate of the ADS8332IBRGER is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system clock frequency and the conversion time of the ADC.
-
The ADS8332IBRGER does not require calibration. It has an internal calibration circuit that calibrates the ADC during power-up. However, it is recommended to perform a system-level calibration to ensure that the ADC is operating within the specified accuracy.
-
The power consumption of the ADS8332IBRGER depends on the operating mode and the sampling rate. In normal mode, the power consumption is typically around 15 mW at 1 MSPS. In low-power mode, the power consumption is typically around 5 mW at 100 kSPS.
Trust Checks
System Verified
ADS8332IBRGER Overview

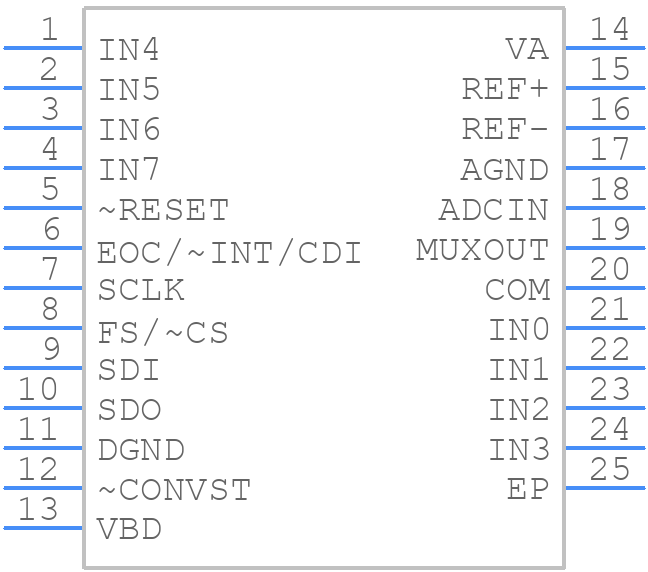

Use the download button to access the ADS8332IBRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
