ADS8353IRTER - Texas Instruments

Description: 16-bit 600-kSPS 2-channel simultaneous-sampling SAR ADC with single-ended inputs

Download ADS8353IRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

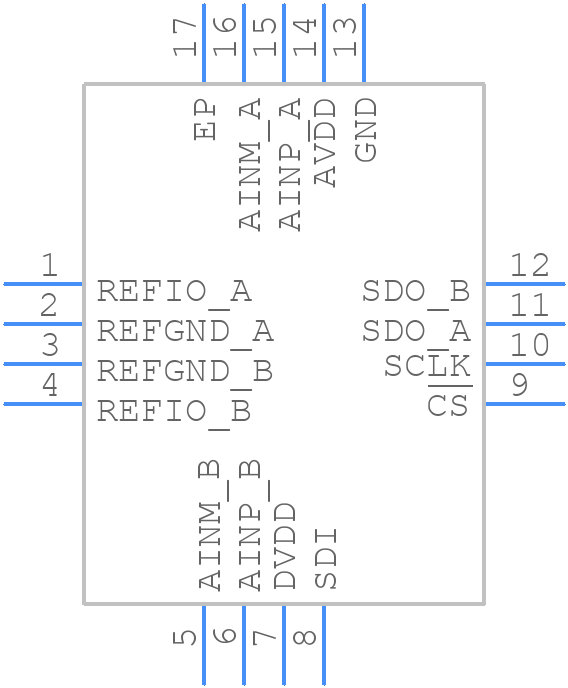

ADS8353IRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8353IRTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)+
click to zoom
3D Models
ADS8353IRTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)+
click to zoom

ADS8353IRTER Details

  • Manufacturer Part Number:

    ADS8353IRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    -1.2 V

  • Conversion Time-Max:

    0.73 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.6 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8353IRTER Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's also recommended to consult with a TI FAE or a PCB design expert for specific guidance.
  • To optimize performance, ensure that the analog input signals are properly filtered and buffered, and that the reference voltage is stable and noise-free. Also, ensure that the digital output is properly terminated and that the system clock is stable and jitter-free. Consult the datasheet and application notes for more information.
  • The ADS8353IRTER can achieve a maximum sampling rate of 250 kSPS, but this may vary depending on the system clock frequency and the specific application. Consult the datasheet and application notes for more information.
  • The ADS8353IRTER outputs 16-bit digital data in a serial format. The data can be handled using a microcontroller or an FPGA, and can be processed using software or hardware. Consult the datasheet and application notes for more information on data formatting and processing.
  • The power consumption of the ADS8353IRTER varies depending on the operating mode and the system clock frequency. Typically, the power consumption is around 15 mW at 250 kSPS, but this can be reduced to around 5 mW in low-power mode. Consult the datasheet for more information.
