ADS8353QPWQ1 - Texas Instruments

Description: Analog to Digital Converters - ADC A 595-ADS8353QPWRQ1

Download ADS8353QPWQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

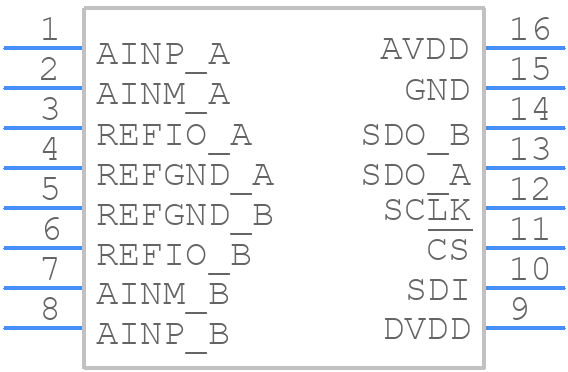

Symbol
ADS8353QPWQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8353QPWQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
ADS8353QPWQ1 - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

ADS8353QPWQ1 Details

  • Manufacturer Part Number:

    ADS8353QPWQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2019-01-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    0.73 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.6 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS8353QPWQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8353QPWQ1 evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The ADS8353QPWQ1 has high-speed digital outputs that require careful handling to avoid signal degradation and electromagnetic interference (EMI). Use transmission lines, terminate the lines properly, and consider using a low-pass filter to reduce high-frequency noise.
  • The ADS8353QPWQ1 requires a clean and stable power supply. Use a low-noise, low-dropout regulator (LDO) and decouple the power pins with high-quality capacitors. Ensure the power supply can handle the device's current requirements, especially during high-frequency conversions.
  • Optimize the analog input stage by using a low-noise, low-impedance signal source, and consider using an anti-aliasing filter to remove high-frequency noise. Ensure the input signal is within the specified range and that the input impedance is matched to the device's input impedance.
  • Use a high-quality, low-jitter clock source, such as a crystal oscillator or a high-stability clock generator. Ensure the clock frequency is within the specified range and that the clock signal is properly terminated and decoupled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8353QPWQ1 Overview

Use the download button to access the ADS8353QPWQ1 schematic symbol, PCB footprint, and 3D model.
