ADS8353QPWRQ1 - Texas Instruments

Description: Automotive 16-bit 600-kSPS 2-channel simultaneous-sampling SAR ADC with single-ended inputs

Download ADS8353QPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

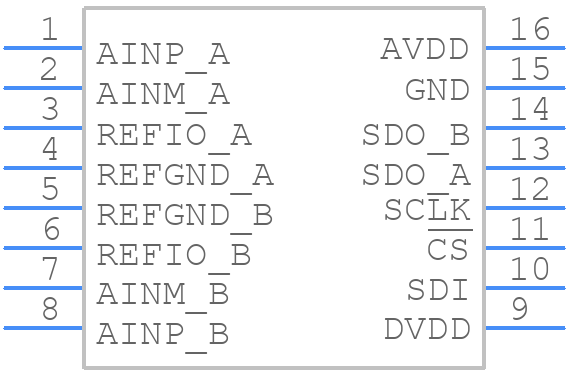

ADS8353QPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8353QPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - ADS8353QPWRQ1
click to zoom
3D Models
ADS8353QPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - ADS8353QPWRQ1
click to zoom

ADS8353QPWRQ1 Details

  • Manufacturer Part Number:

    ADS8353QPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2019-01-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    0.73 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.6 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS8353QPWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals and avoid crossing digital signals over analog signals. Also, use a common mode filter or ferrite bead to filter out high-frequency noise.
  • The ADS8353QPWRQ1 has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. Additionally, the user can perform an external calibration by applying a known input voltage and adjusting the offset and gain registers accordingly.
  • The ADS8353QPWRQ1 can handle input voltages up to 5.5V without damage. However, the recommended input voltage range is 0V to 5V to ensure accurate measurements. Voltages above 5V may cause damage to the device.
  • The ADS8353QPWRQ1 has a serial interface that can be connected to a microcontroller or FPGA. The device uses a SPI-compatible interface, and the user can use a standard SPI protocol to read and write data to the device. The user should ensure that the microcontroller or FPGA is configured to use the correct clock polarity and phase.
  • The ADS8353QPWRQ1 has a typical power consumption of 12mW at 3.3V and 1.5MHz clock frequency. To reduce power consumption, the user can reduce the clock frequency, use the power-down mode, or use the auto-power-down feature, which automatically powers down the device when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8353QPWRQ1 Overview

Use the download button to access the ADS8353QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
