The recommended layout and routing for the ADS8354IRTER involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS8354IRTER in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, ensure that the analog and digital grounds are properly separated and decoupled.
The maximum sampling rate of the ADS8354IRTER is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the desired signal-to-noise ratio.
The ADS8354IRTER does not require calibration. However, it's recommended to perform a system-level calibration to ensure that the ADC is operating within the desired specifications. This can be done by applying a known input signal and adjusting the system's gain and offset to achieve the desired accuracy.
The power consumption of the ADS8354IRTER depends on the operating frequency, voltage supply, and other factors. Typically, the power consumption is around 15 mW at 3.3 V and 250 kSPS. However, it's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8354IRTER Overview

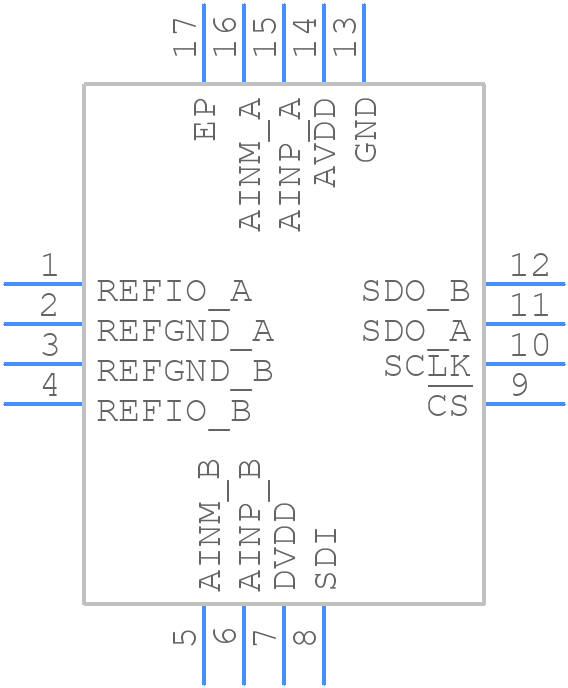

Use the download button to access the ADS8354IRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
