The recommended layout and routing for the ADS8354IRTET involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS8354IRTET in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, ensure that the analog and digital grounds are properly separated and decoupled.
The maximum sampling rate of the ADS8354IRTET is 250 kSPS. However, the actual achievable sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface used.
The ADS8354IRTET has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal performance. Refer to the datasheet for specific calibration procedures and equations.
The power consumption of the ADS8354IRTET is typically around 15 mW at 3.3 V and 250 kSPS. To reduce power consumption, consider using a lower supply voltage, reducing the sampling rate, or using the device's power-down mode when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8354IRTET Overview

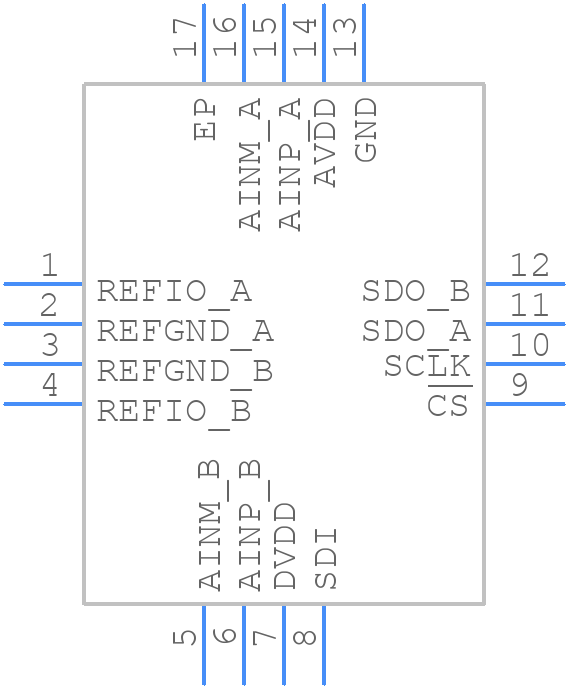

Use the download button to access the ADS8354IRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
