ADS8355IRTER - Texas Instruments

Description: DUAL CHANNEL 1MSPS SS ATOD

Download ADS8355IRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

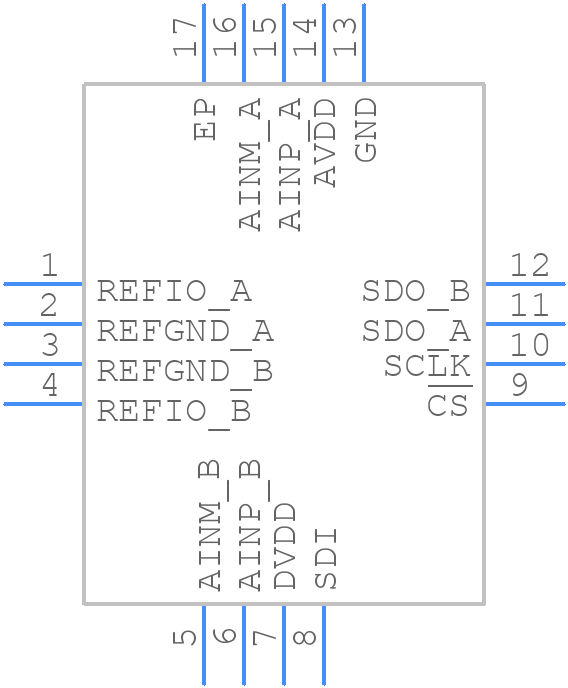

ADS8355IRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8355IRTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)_2020
click to zoom
3D Models
ADS8355IRTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)_2020
click to zoom

ADS8355IRTER Details

  • Manufacturer Part Number:

    ADS8355IRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2020-02-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    0.65 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.004577637%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8355IRTER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8355IRTER evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The ADS8355IRTER outputs 16-bit data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. You can use a SPI or QSPI interface to communicate with the device. Make sure to follow the timing diagrams and protocol specified in the datasheet.
  • The ADS8355IRTER can operate at a maximum sampling rate of 250 kSPS. However, this rate may vary depending on the specific application, clock frequency, and system design. Refer to the datasheet for more information on the sampling rate vs. clock frequency trade-offs.
  • The ADS8355IRTER has an internal calibration circuit that can be enabled through the CAL pin. You can also perform external calibration using an external voltage reference and adjusting the gain and offset registers. Refer to the datasheet and application notes for more information on calibration procedures.
  • The ADS8355IRTER has a typical power consumption of 15 mW at 3.3 V and 250 kSPS. To reduce power consumption, you can lower the clock frequency, reduce the sampling rate, or use the device's power-down mode. Additionally, consider using a lower voltage supply or optimizing your system design to minimize power consumption.
