Texas Instruments provides a layout and routing guide in the ADS8401 datasheet, which includes recommendations for component placement, trace routing, and grounding. Additionally, the TI website has an application note (SLAA554) that provides more detailed guidance on PCB layout and design considerations for high-speed analog-to-digital converters like the ADS8401.
To handle the high-speed digital outputs of the ADS8401IPFBT, engineers should use controlled impedance traces, terminate the outputs with resistors, and use EMI-reducing techniques such as differential signaling and shielding. Additionally, the use of low-skew, high-speed cables and connectors can help minimize signal degradation and EMI.
The optimal clock frequency for the ADS8401IPFBT is dependent on the specific application and sampling rate requirements. However, the datasheet recommends a clock frequency between 10 MHz and 40 MHz. To ensure proper clock synchronization, engineers should use a high-quality clock source, such as a crystal oscillator, and ensure that the clock signal is properly terminated and routed to minimize jitter and skew.
The ADS8401IPFBT has an internal calibration circuit that can be used to calibrate the device. Engineers can use the CAL pin to initiate calibration, and the device will automatically adjust its internal offset and gain to optimize performance. Additionally, external calibration techniques, such as using an external reference voltage, can be used to further improve accuracy and performance.
The ADS8401IPFBT has a maximum junction temperature of 150°C, and engineers should ensure that the device is operated within the recommended temperature range. Thermal management considerations include using a heat sink, ensuring good airflow, and minimizing power dissipation. Additionally, engineers should consider the thermal coefficient of the device and ensure that the system is designed to operate reliably over the expected temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8401IPFBT Overview

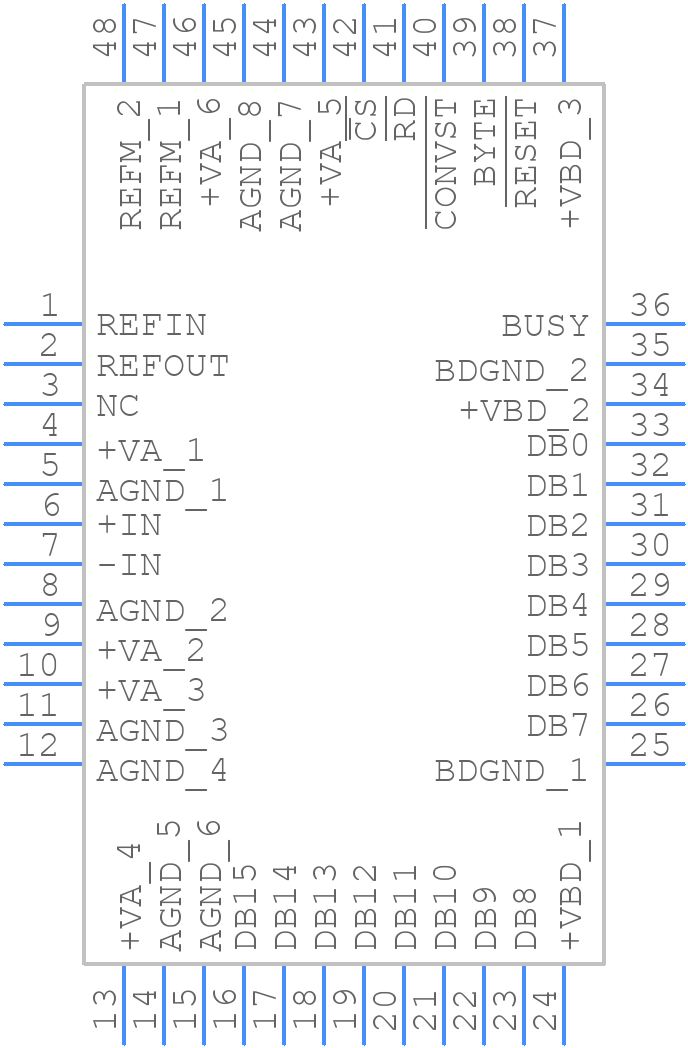

Use the download button to access the ADS8401IPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
