ADS8405IBPFBT - Texas Instruments

Description: 16-Bit 1.25 MSPS Unipolar Input Micro Power Sampling ADC

Download ADS8405IBPFBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

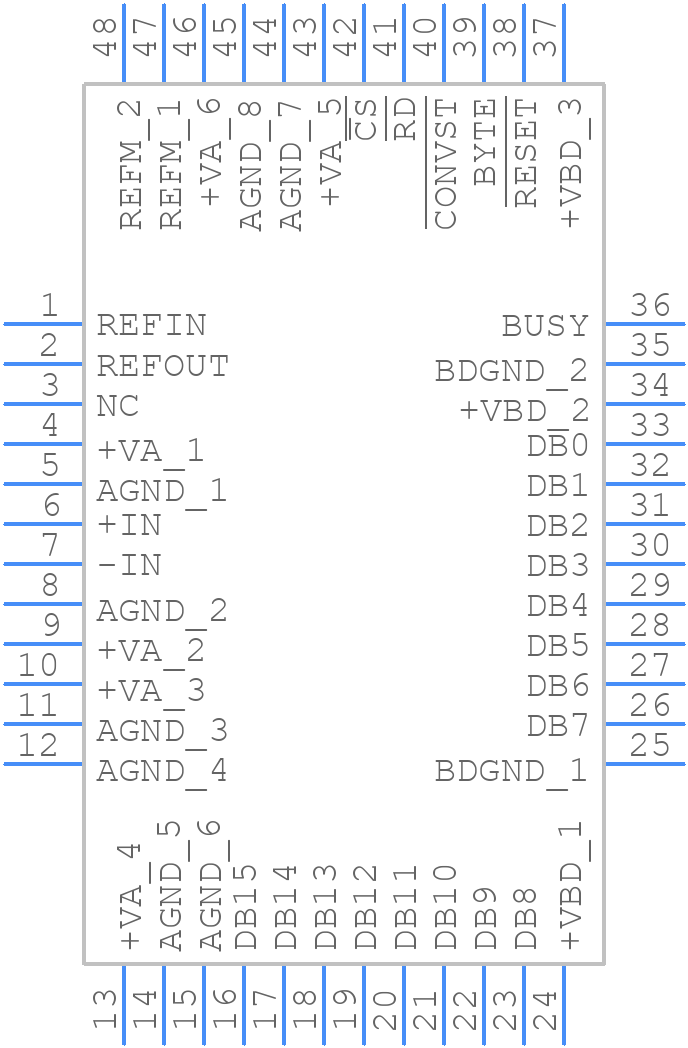

Symbol
ADS8405IBPFBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8405IBPFBT - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom
3D Models
ADS8405IBPFBT - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom

ADS8405IBPFBT Details

  • Manufacturer Part Number:

    ADS8405IBPFBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TFQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4.2 V

  • Conversion Time-Max:

    0.65 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    34 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADS8405IBPFBT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals and avoid crossing digital signals over analog signals. Also, use a common mode filter or a ferrite bead to filter out high-frequency noise.
  • The ADS8405IBPFBT has an internal calibration circuit that is enabled by applying a voltage to the CAL pin. The calibration process is initiated by applying a voltage to the CAL pin and then releasing it. The device will then perform a self-calibration sequence. It is recommended to perform calibration after power-up and after any changes to the reference voltage or clock frequency.
  • The recommended clock frequency for the ADS8405IBPFBT is between 1 MHz and 20 MHz. The conversion rate is directly proportional to the clock frequency. A higher clock frequency will result in a faster conversion rate, but may also increase power consumption and noise sensitivity.
  • The ADS8405IBPFBT has internal overvoltage protection up to 5V, but it is still recommended to use external protection circuitry such as voltage-limiting resistors or clamping diodes to prevent damage from excessive voltage. For undervoltage conditions, it is recommended to use a voltage regulator or a voltage supervisor to ensure a stable voltage supply.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent unwanted digital noise from affecting the analog signals.
