A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, use a low-ESR capacitor for the AVDD pin and a 0.1uF capacitor for the DVDD pin. Refer to the TI application note 'ADS8405 Layout and Routing Guidelines' for more details.
To optimize performance in a multi-ADC system, ensure that each ADC has its own separate analog and digital grounds, and use a star-grounding configuration. Also, use a common clock source for all ADCs and ensure that the clock signal is clean and jitter-free. Finally, consider using a separate power supply for each ADC to minimize noise coupling.
The recommended clock frequency for the ADS8405IPFBT is between 1 MHz and 20 MHz. A higher clock frequency can improve the converter's throughput, but may also increase power consumption and noise sensitivity. A lower clock frequency can reduce power consumption, but may also reduce the converter's throughput.
The ADS8405IPFBT outputs 16-bit data in a two's complement format. A recommended data processing pipeline includes offset correction, gain correction, and digital filtering to remove noise and artifacts. Additionally, consider using a FIFO or a buffer to handle the output data and ensure that it is processed in a timely manner.
The ADS8405IPFBT has a maximum junction temperature of 150°C. Temperature affects the converter's performance, with increased temperature resulting in increased noise and decreased accuracy. Ensure good thermal design practices, such as using a heat sink or a thermal pad, to keep the device temperature within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8405IPFBT Overview

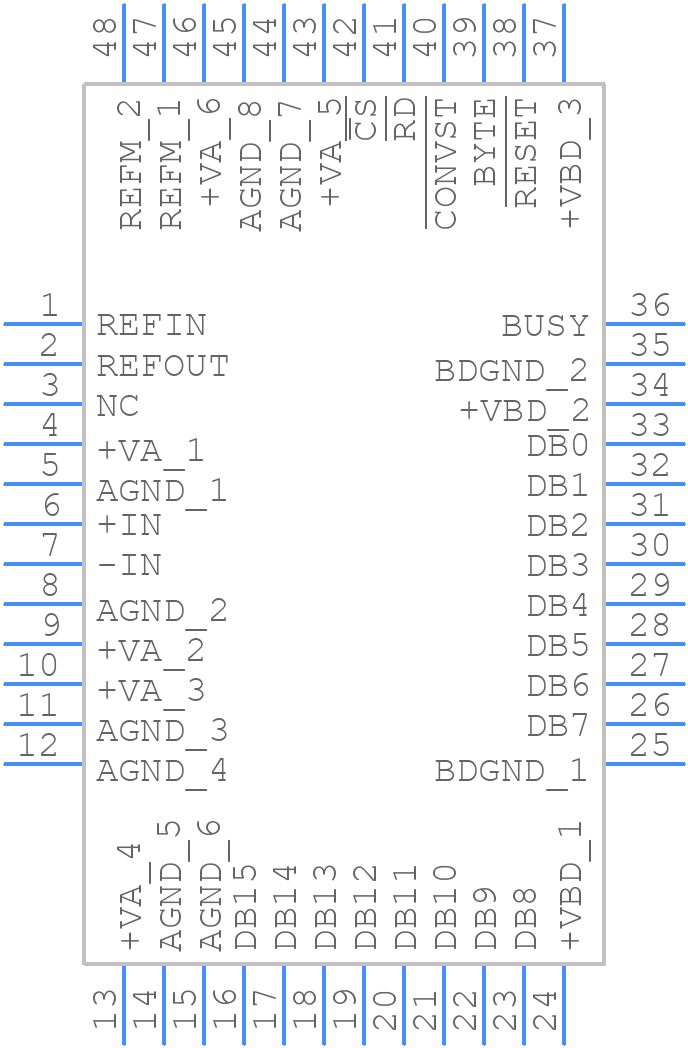

Use the download button to access the ADS8405IPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
