The ADS8422IBPFBR is a high-speed analog-to-digital converter, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping the analog and digital signal traces separate.
To optimize the ADC's performance, consider the following: ensure proper power supply decoupling, use a low-noise reference voltage, minimize input capacitance, and optimize the analog input signal bandwidth. Additionally, consider using the ADC's built-in calibration features and adjusting the sampling rate and clock frequency to suit your application.
The ADS8422IBPFBR can use an external clock source or its internal clock generator. For optimal performance, TI recommends using a high-quality, low-jitter clock source, such as a crystal oscillator or a high-frequency clock generator. The clock frequency should be set according to the desired sampling rate and application requirements.
The ADS8422IBPFBR outputs 16-bit digital data in a parallel format. To handle the output data, use a digital interface such as an FPGA or a microcontroller with a parallel interface. Ensure proper synchronization and data capture to avoid data loss or corruption.
The ADS8422IBPFBR has a typical power consumption of 330 mW at 65 MSPS. To reduce power consumption, consider the following: reduce the sampling rate, use the ADC's power-down mode, and optimize the analog input signal amplitude to minimize the ADC's dynamic power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8422IBPFBR Overview

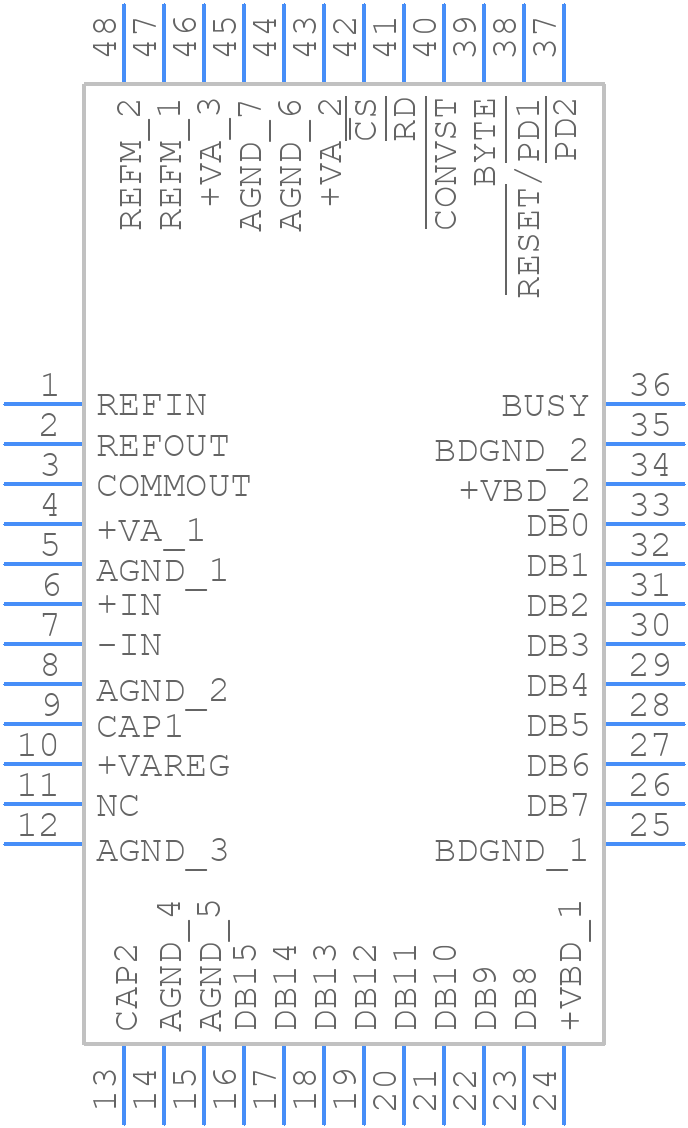

Use the download button to access the ADS8422IBPFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
