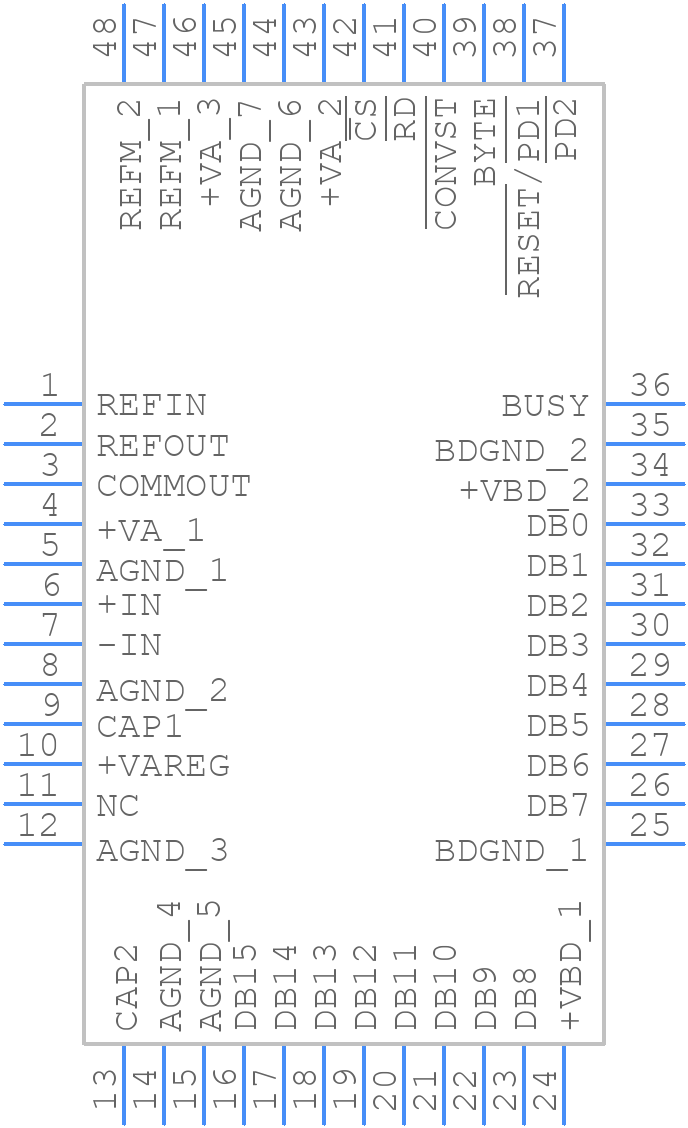

ADS8422IBPFBT - Texas Instruments

ADS8422IBPFBT Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the ADS8422IBPFBT to minimize noise and ensure optimal performance?
  Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The input and output traces should be routed away from each other and from the digital signals. Additionally, decoupling capacitors should be placed close to the device.
• How do I optimize the performance of the ADS8422IBPFBT in a system with multiple analog-to-digital converters?
  To optimize performance, ensure that each ADC has its own separate analog power supply and ground plane. Use a common mode filter or a ferrite bead to reduce noise coupling between the ADCs. Also, consider using a separate analog ground plane for each ADC.
• What is the recommended clock frequency and clock source for the ADS8422IBPFBT?
  The recommended clock frequency for the ADS8422IBPFBT is between 1 MHz and 20 MHz. A crystal oscillator or a high-quality clock source is recommended to ensure low jitter and optimal performance.
• How do I handle the digital output data from the ADS8422IBPFBT in a microcontroller or FPGA?
  The ADS8422IBPFBT outputs 16-bit data in a serial format. The digital output data can be handled using a serial peripheral interface (SPI) or a parallel interface. The microcontroller or FPGA should be configured to receive the data in the correct format and at the correct clock rate.
• What is the power consumption of the ADS8422IBPFBT, and how can I reduce it?
  The power consumption of the ADS8422IBPFBT is typically around 15 mW at 3.3 V and 10 MSPS. To reduce power consumption, consider using a lower clock frequency, reducing the analog input range, or using the device's power-down mode when not in use.
