Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The input and output traces should be routed away from each other and from the digital signals. Additionally, decoupling capacitors should be placed close to the device.
To ensure accuracy, it's essential to follow proper PCB layout and routing guidelines, use a low-noise power supply, and ensure that the input signals are properly filtered and buffered. Additionally, the ADC should be operated within its specified temperature range, and the input signals should be within the specified voltage range.
The recommended clock frequency for the ADS8422IPFBR is between 1 MHz and 20 MHz. A higher clock frequency can improve the ADC's throughput, but it may also increase the power consumption and noise sensitivity. A lower clock frequency can reduce power consumption but may also reduce the ADC's throughput.
The ADS8422IPFBR outputs 16-bit digital data in a binary two's complement format. The output data can be handled using a microcontroller or an FPGA, and it's essential to ensure that the receiving device can handle the data rate and format. The output data can be processed and analyzed using digital signal processing techniques.
The power consumption of the ADS8422IPFBR depends on the clock frequency, operating mode, and supply voltage. To reduce power consumption, operate the ADC at a lower clock frequency, use a lower supply voltage, and enable the power-down mode when not in use. Additionally, use a low-power microcontroller or FPGA to process the output data.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8422IPFBR Overview

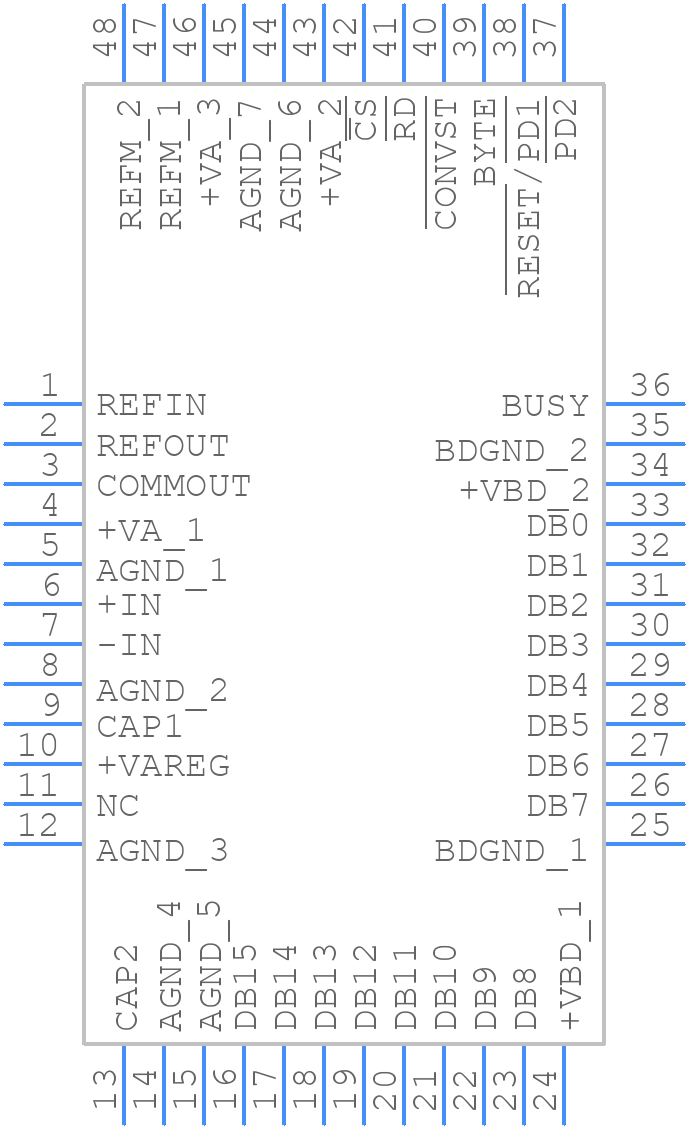

Use the download button to access the ADS8422IPFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
