Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the power supply with 0.1uF and 10uF capacitors.
The gain and offset calibration can be done using the internal calibration registers. Set the CAL_EN bit to enable calibration, and then write the desired gain and offset values to the corresponding registers. Refer to the datasheet for the specific register addresses and values.
The maximum sampling rate of the ADS8481IBRGZT is 1 MSPS. However, the actual achievable sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital output data rate. Ensure that the system's clock frequency is at least 4 times the sampling rate, and the analog input bandwidth is sufficient to support the desired sampling rate.
The ADS8481IBRGZT outputs 16-bit digital data in two's complement format. The output data is available on the D[15:0] pins, with D[15] being the MSB and D[0] being the LSB. The output data is updated on each clock cycle, and the data is valid on the rising edge of the clock signal.
The typical power consumption of the ADS8481IBRGZT is 35 mW at 1 MSPS. To reduce power consumption, consider using the power-down mode (PD pin), reducing the clock frequency, or using a lower supply voltage. Additionally, optimize the system's power management by turning off unnecessary components and using low-power modes when possible.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8481IBRGZT Overview

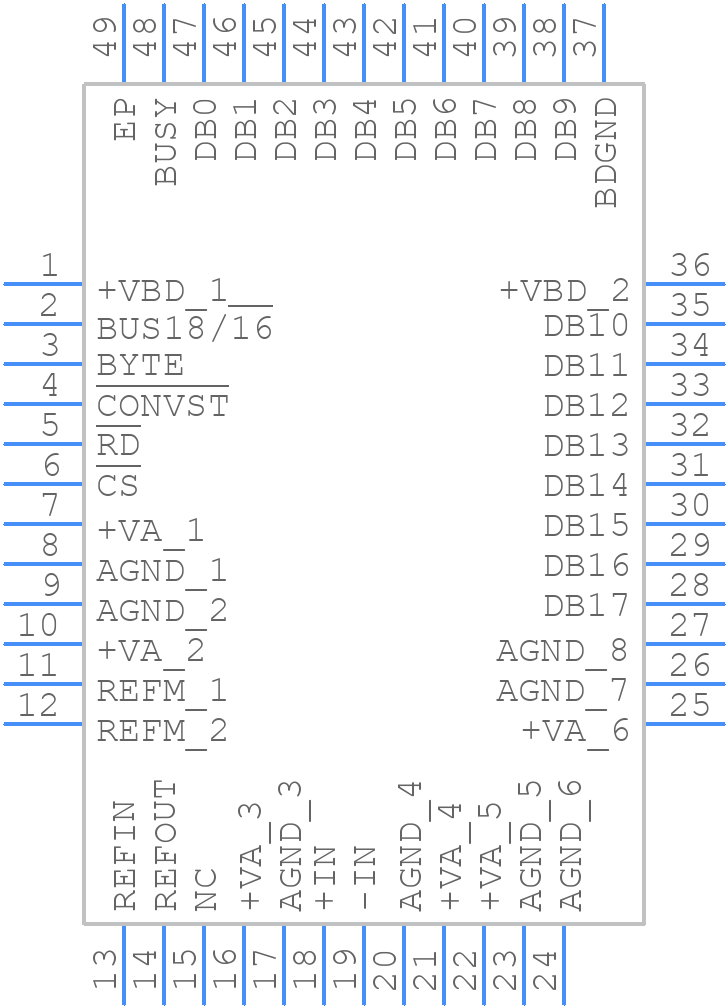

Use the download button to access the ADS8481IBRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
