Texas Instruments provides a layout guide in the datasheet, but it's essential to follow additional guidelines: keep analog and digital grounds separate, use a solid ground plane, and route analog signals away from digital signals. Also, use a low-ESR capacitor for the AVDD pin and a 0.1uF capacitor for the DVDD pin.
For differential input mode, connect the positive input signal to the IN+ pin and the negative input signal to the IN- pin. For pseudo-differential input mode, connect the input signal to the IN+ pin and the IN- pin to a reference voltage (e.g., GND or a voltage divider). Ensure the input common-mode voltage is within the specified range.
The maximum sampling rate of the ADS8481IBRGZTG4 is 1 MSPS. However, the actual achievable sampling rate depends on the system's clock frequency, conversion mode, and output data rate. Higher sampling rates increase power consumption, so it's essential to balance performance and power requirements.
The ADS8481IBRGZTG4 offers various output modes, including binary, twos-complement, and offset binary. Choose the output mode based on your system's requirements. Ensure proper handling of the output data format to avoid errors, and consider the implications of each mode on your system's processing and storage requirements.
The ADS8481IBRGZTG4 has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or a thermally conductive PCB material. Keep the device away from heat sources, and consider using thermal interface materials to reduce thermal resistance. Monitor the device's temperature and adjust the system's thermal design accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8481IBRGZTG4 Overview

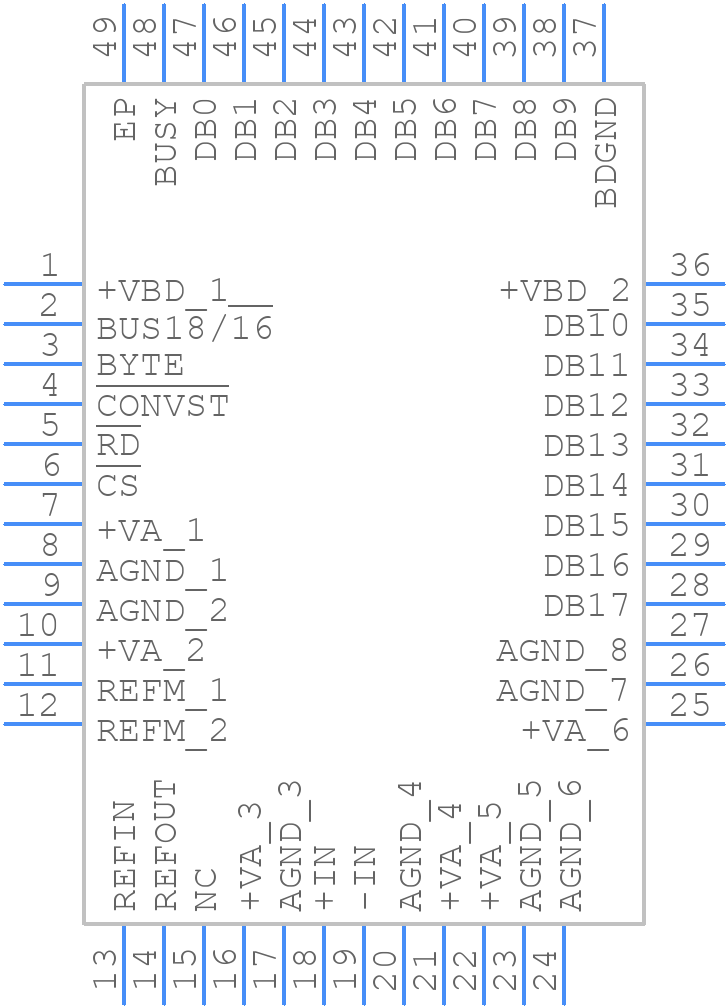

Use the download button to access the ADS8481IBRGZTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
