The recommended layout and routing for the ADS8509IDB involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS8509IDB in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are separated and that the digital noise is not coupled into the analog circuitry.
The maximum sampling rate of the ADS8509IDB is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the system's noise performance.
The ADS8509IDB does not require calibration. However, it's recommended to perform a system-level calibration to ensure that the overall system meets the required specifications. This can be done by applying a known input signal and adjusting the system's gain and offset to achieve the desired performance.
The power consumption of the ADS8509IDB is typically around 35 mW at a supply voltage of 5 V. However, the actual power consumption may vary depending on the operating frequency, the analog input frequency, and the system's power management scheme.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8509IDB Overview

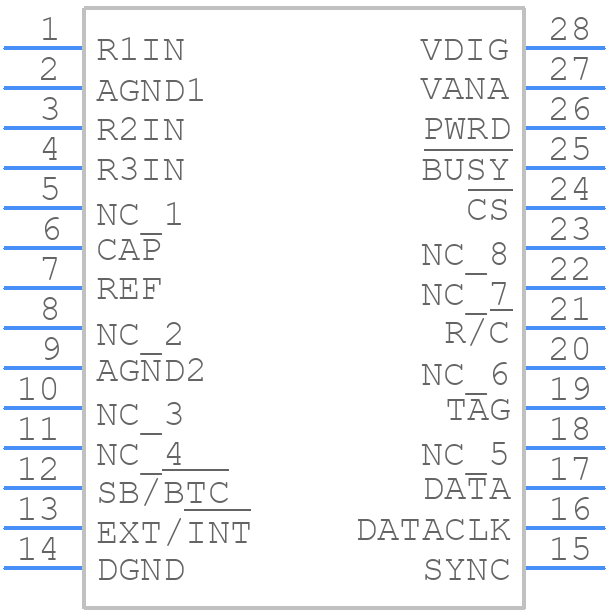

Use the download button to access the ADS8509IDB schematic symbol, PCB footprint, and 3D model.
