- Part Number ADS8517IPWR
- Manufacturer Texas Instruments
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW(R-PDSO-G28)
- Released Date Jan 12, 2017
- Last Modified Date May 10, 2025 7:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADS8517IPWR Details
-
Manufacturer Part Number:
ADS8517IPWR
-
Brand Name:
Texas Instruments
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SSOP
-
Package Description:
TSSOP-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog Input Voltage-Max:
10 V
ADS8517IPWR Frequently Asked Questions (FAQs)
-
The recommended layout and routing for the ADS8517IPWR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To optimize the performance of the ADS8517IPWR in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, ensure that the power supply is well-regulated and decoupled.
-
The maximum sampling rate of the ADS8517IPWR is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the desired signal-to-noise ratio.
-
The ADS8517IPWR does not require calibration. However, it's recommended to perform a system-level calibration to ensure that the ADC is operating within the desired specifications. This can be done by applying a known input signal and measuring the output code to determine the gain and offset errors.
-
The power consumption of the ADS8517IPWR is typically around 15 mW at 3.3 V and 250 kSPS. However, the actual power consumption may vary depending on the operating frequency, input voltage, and other factors.
Trust Checks
System Verified
ADS8517IPWR Overview

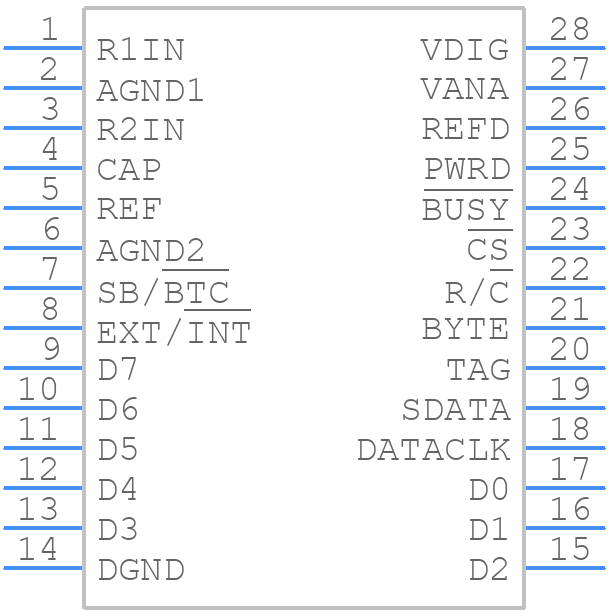

Use the download button to access the ADS8517IPWR schematic symbol, PCB footprint, and 3D model.
