ADS8862IDGS - Texas Instruments

Description: 16-bit, 680-kSPS, serial interface, micropower, miniature, single-ended input SAR ADC

Download ADS8862IDGS Model

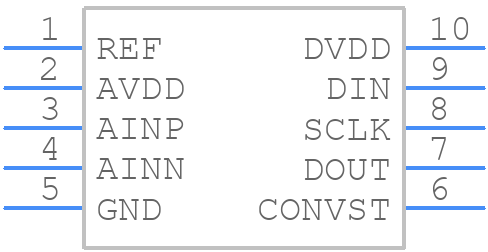

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8862IDGS - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
ADS8862IDGS - Texas Instruments  - 3D model - Small Outline Packages - DGS0010A
click to zoom

ADS8862IDGS Details

  • Manufacturer Part Number:

    ADS8862IDGS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    2.7 V

  • Conversion Time-Max:

    0.93 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.68 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8862IDGS Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide in the ADS8862IDGS datasheet, which recommends a 4-layer PCB with a solid ground plane, and careful routing of analog and digital signals to minimize noise and crosstalk. Additionally, it's recommended to use a low-ESR capacitor for the AVDD pin and to decouple the DVDD pin with a 0.1uF capacitor.
  • To minimize EMI, it's recommended to use a low-inductance path for the digital outputs, such as a PCB trace with a low impedance and a short length. Additionally, consider using a series resistor or a ferrite bead to reduce the high-frequency energy radiated by the digital outputs. It's also important to follow good PCB design practices, such as using a solid ground plane and avoiding vias near the digital outputs.
  • The maximum sampling rate of the ADS8862IDGS is 1 MSPS, and it can be achieved by using the internal clock or an external clock source. The power consumption of the device increases with the sampling rate, so it's recommended to use the lowest sampling rate necessary for the application to minimize power consumption. The power consumption can be estimated using the formula provided in the datasheet.
  • The ADS8862IDGS has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal accuracy and linearity. The calibration process can be performed using the SPI interface and the calibration registers can be accessed through the device's register map.
  • The recommended power-up sequence for the ADS8862IDGS is to first power up the AVDD pin, followed by the DVDD pin, and then the digital inputs. This sequence ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper operation of the device.
