ADS8864IDRCT - Texas Instruments

Description: Analog to Digital Converters - ADC 16B 400kSPS microPwr Mini SGL-Ended inpt

Download ADS8864IDRCT Model

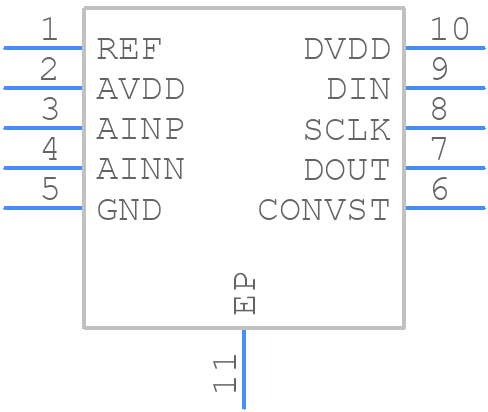

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8864IDRCT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC0010D
click to zoom
3D Models
ADS8864IDRCT - Texas Instruments  - 3D model - Small Outline No-lead - DRC0010D
click to zoom

ADS8864IDRCT Details

  • Manufacturer Part Number:

    ADS8864IDRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    HVSON-10

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    2.7 V

  • Conversion Time-Max:

    1.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8864IDRCT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide in the ADS8864IDRCT datasheet, which recommends a 4-layer PCB with a solid ground plane, and careful routing of analog and digital signals to minimize noise and crosstalk. Additionally, it's recommended to use a low-ESR capacitor for the AVDD pin and to decouple the DVDD pin with a 0.1uF capacitor.
  • To minimize EMI, it's recommended to use a low-inductance path for the digital outputs, such as a PCB trace with a low impedance and a short length. Additionally, consider using a series resistor or a ferrite bead to reduce the high-frequency energy radiated by the digital outputs. It's also important to ensure that the digital outputs are properly terminated to prevent signal reflections.
  • The recommended power-up sequence for the ADS8864IDRCT is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent damage or incorrect operation. It's also recommended to ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • To optimize the performance of the ADS8864IDRCT in a system with multiple ADCs, it's recommended to consider the following: ensure that each ADC has its own dedicated analog power supply and ground plane, use a common clock source for all ADCs, and consider using a clock jitter cleaner or a phase-locked loop (PLL) to reduce clock jitter. Additionally, ensure that the analog inputs are properly filtered and buffered to prevent noise and crosstalk.
  • The ADS8864IDRCT has an internal calibration circuit that can be used to calibrate the device. The recommended method is to use the internal calibration circuit to calibrate the device during power-up, and then to use an external calibration signal to fine-tune the calibration. It's also recommended to consider using an external voltage reference to improve the accuracy of the calibration.
