Description:Analog to Digital Converters - ADC 20-Bit, 500-kSPS, SAR ADC with Internal Reference Buffer, LDO & multiSPI Digital Interface 24-VQFN -40 to 125
Texas Instruments provides a recommended layout and routing guide in the ADS8902BRGETEVM evaluation module documentation. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
The ADS8902BRGET datasheet provides a general guideline for the analog input filter. However, the optimal filter design depends on the specific application's frequency range, noise levels, and signal characteristics. Engineers can use tools like the TI FilterPro software or consult with TI's application engineers to optimize the filter design.
The ADS8902BRGET can operate at a maximum sampling rate of 1 MSPS. However, the actual achievable sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital interface throughput. Engineers should consult the datasheet and evaluate their specific system requirements to determine the maximum achievable sampling rate.
The ADS8902BRGET outputs 16-bit digital data in a serial format. Engineers can use a microcontroller or FPGA to receive and process the data. They should ensure proper synchronization, data formatting, and error handling to ensure accurate and reliable data acquisition.
The ADS8902BRGET has a typical power consumption of 35 mW at 1 MSPS. Engineers can optimize power consumption by adjusting the sampling rate, using the device's power-down mode, and optimizing the system's power supply and clock frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8902BRGET Overview

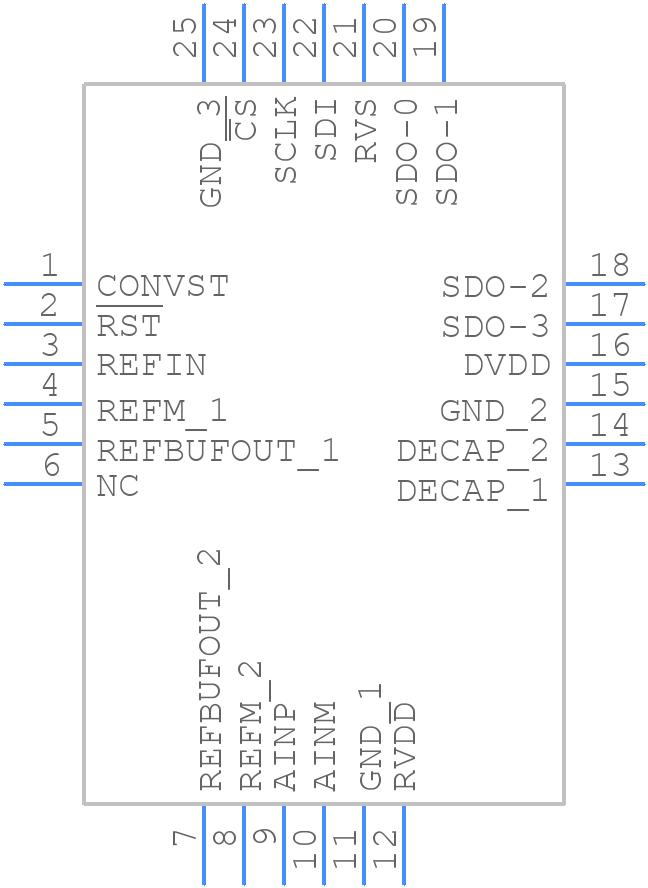

Use the download button to access the ADS8902BRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS89,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
