ADS8910BRGER - Texas Instruments

Description: ADS8910B 18-Bit, 1-MSPS, SAR ADC with internal reference buffer, internal LDO & multiSPI interface

Download ADS8910BRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

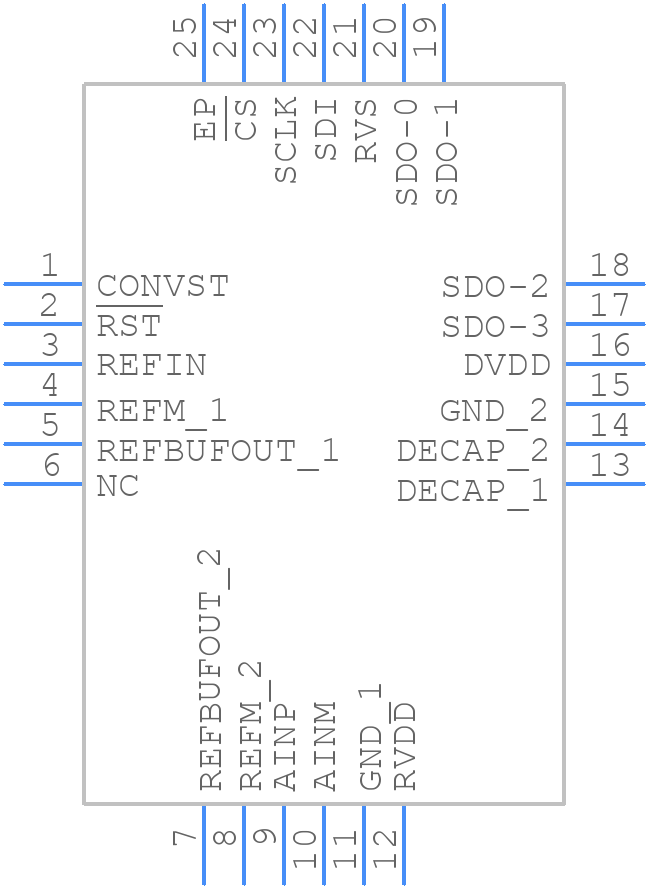

ADS8910BRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8910BRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H_a
click to zoom
3D Models
ADS8910BRGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H_a
click to zoom

ADS8910BRGER Details

  • Manufacturer Part Number:

    ADS8910BRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2016-07-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.2 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.64 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5.8 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS8910BRGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8910BRGEREVM evaluation module documentation. It's essential to follow these guidelines to ensure optimal performance and minimize noise.
  • To handle the high-speed digital outputs, use a low-impedance transmission line, and ensure the receiving device can handle the output voltage and frequency. Additionally, consider using a buffer or repeater if the output signal needs to be transmitted over a long distance.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling. Place a 0.1 μF ceramic capacitor close to the device's power pins, and add a 10 μF electrolytic capacitor in parallel. This will help filter out high-frequency noise and ensure stable operation.
  • Consult the ADS8910BRGER datasheet and application notes for general configuration guidelines. For specific application optimization, consider consulting with a Texas Instruments field application engineer or using the TI E2E community forums for guidance.
  • The ADS8910BRGER has a maximum junction temperature of 125°C. Ensure good thermal conductivity between the device and the PCB, and consider using a heat sink or thermal pad if the device will be operating in a high-temperature environment.
