ADS8910BRGET - Texas Instruments

Description: TEXAS INSTRUMENTS - ADS8910BRGET - Analogue to Digital Converter, 18 bit, 1 MSPS, Differential, SPI, Single, 3 V

Download ADS8910BRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

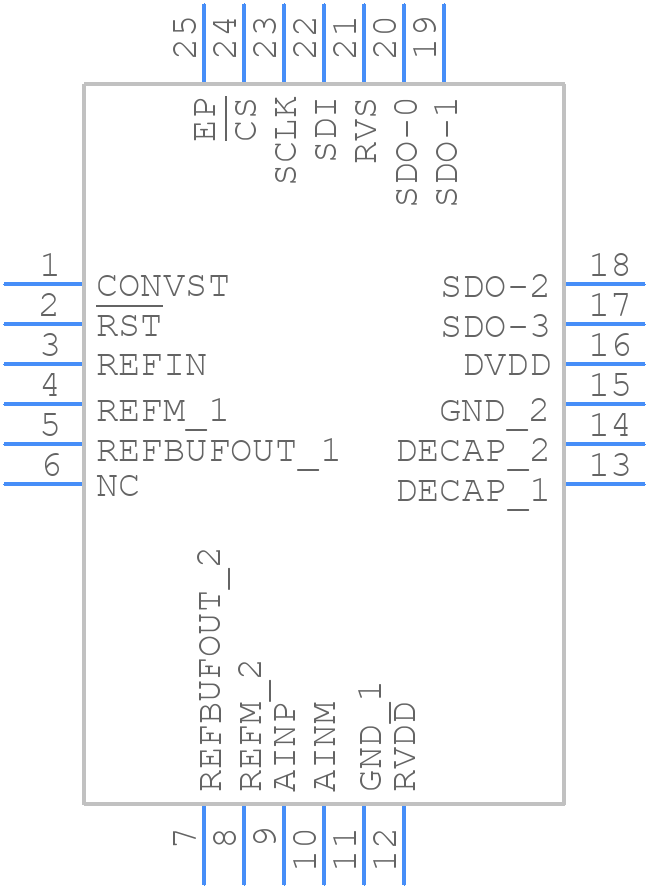

ADS8910BRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8910BRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-1
click to zoom
3D Models
ADS8910BRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-1
click to zoom

ADS8910BRGET Details

  • Manufacturer Part Number:

    ADS8910BRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2016-07-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.2 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.64 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5.8 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS8910BRGET Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8910BRGETEVM evaluation module documentation. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
  • The ADS8910BRGET has a programmable analog input filter. To optimize the filter, you need to consider your signal frequency, noise bandwidth, and desired attenuation. TI provides a filter design tool and application notes to help you customize the filter for your specific use case.
  • The ADS8910BRGET can operate at a maximum sampling rate of 1 MSPS (mega-samples per second). However, the actual achievable sampling rate depends on the system clock frequency, analog input frequency, and the number of channels being converted.
  • The ADS8910BRGET outputs 18-bit digital data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. TI provides example code and interface guidelines to help you integrate the ADS8910BRGET with your digital system.
  • The ADS8910BRGET has a typical power consumption of 35 mW at 1 MSPS. To reduce power consumption, you can adjust the sampling rate, use the power-down mode, or optimize the analog input signal to minimize the number of conversions required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8910BRGET Overview

Use the download button to access the ADS8910BRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS89, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
