The recommended layout and routing for the ADS9110IRGER involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also important to keep the analog and digital power supplies separate and to use decoupling capacitors to reduce noise.
To optimize the performance of the ADS9110IRGER in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are separated and that the power supply is well-regulated.
The maximum sampling rate of the ADS9110IRGER is 2 MSPS (mega-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
The ADS9110IRGER does not require calibration. It has an internal calibration circuit that ensures accurate conversions. However, it's recommended to perform a system-level calibration to account for any system-specific errors or offsets.
The power consumption of the ADS9110IRGER depends on the operating mode and the clock frequency. In normal operation, the typical power consumption is around 35 mW. In power-down mode, the typical power consumption is around 10 μW.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS9110IRGER Overview

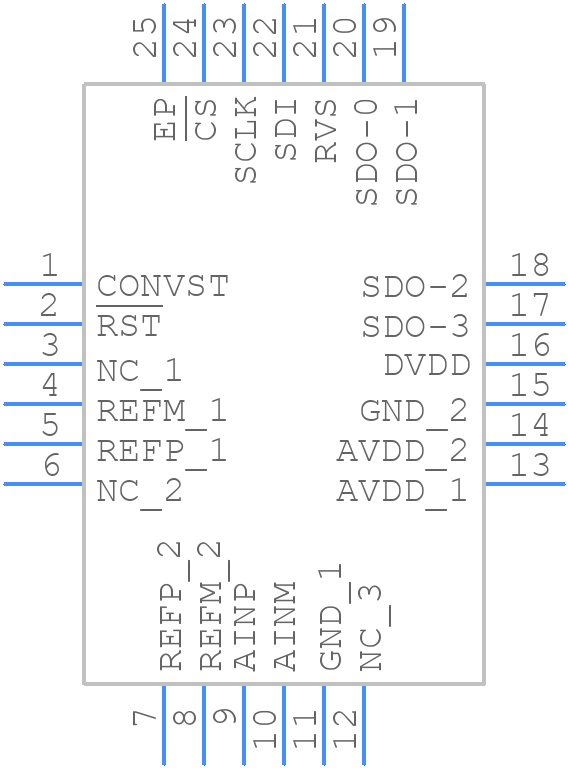

Use the download button to access the ADS9110IRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS91,
or try a keyword search, such as Analog to Digital Converters
