ADS9110IRGET - Texas Instruments

Description: TEXAS INSTRUMENTS - ADS9110IRGET - Analogue to Digital Converter, 1-CH, 18 bit, 2 MSPS, Differential, SPI, Single, 1.65 V

Download ADS9110IRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

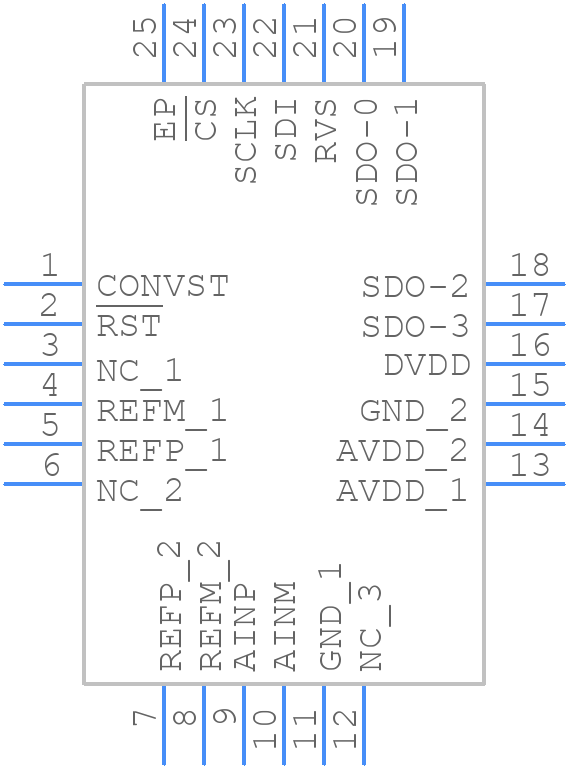

ADS9110IRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS9110IRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024
click to zoom
3D Models
ADS9110IRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024
click to zoom

ADS9110IRGET Details

  • Manufacturer Part Number:

    ADS9110IRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Conversion Time-Max:

    0.34 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    5.7%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.25 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS9110IRGET Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS9110IRGET Evaluation Module User's Guide (SLAU685). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The ADS9110IRGET has a flexible AFE that can be optimized for different applications. TI provides an AFE optimization guide in the ADS9110IRGET datasheet (SLAS964) that helps engineers select the right gain, filter, and input configuration for their specific use case.
  • The ADS9110IRGET outputs data in a 16-bit or 18-bit format, depending on the configuration. Engineers should use a FIFO or a buffer to handle the data output, and consider using a digital signal processing (DSP) or a microcontroller (MCU) to process the data further.
  • To ensure EMC and EMI compliance, engineers should follow proper PCB design and layout practices, use shielding and grounding techniques, and consider using EMI filters and common-mode chokes. TI provides EMC and EMI guidelines in the ADS9110IRGET datasheet and application notes.
  • The ADS9110IRGET has a typical power consumption of 35 mW at 1 MSPS. To optimize power consumption, engineers can use the device's power-down mode, reduce the sampling rate, and use a lower supply voltage. TI provides power consumption estimates and optimization guidelines in the ADS9110IRGET datasheet.
