AMC1303E0520DWVR - Texas Instruments

Description: Small Reinforced Isolated Modulator With ±50mV Input, Int Clk, and Manchester-Encoded CMOS Interface

Download AMC1303E0520DWVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

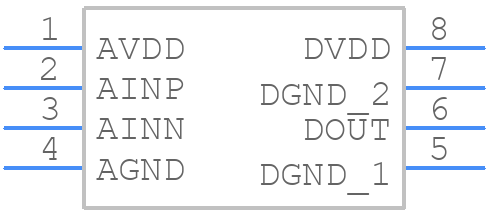

Symbol
AMC1303E0520DWVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1303E0520DWVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A
click to zoom
3D Models
AMC1303E0520DWVR - Texas Instruments - 3D model - Small Outline Packages - DWV0008A
click to zoom

AMC1303E0520DWVR Details

  • Manufacturer Part Number:

    AMC1303E0520DWVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 50mV

  • Analog Input Voltage-Max:

    0.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    20 MHz

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    9.8 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

AMC1303E0520DWVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1303E0520DWVR evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AMC1303E0520DWVR does not require calibration, as it is a self-calibrating device. However, it is recommended to follow the application guidelines and layout recommendations to ensure optimal performance.
  • The maximum cable length that can be used with the AMC1303E0520DWVR depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 10 cm) to minimize noise and signal degradation.
  • The AMC1303E0520DWVR is rated for operation up to 125°C, but it is recommended to derate the device's performance at higher temperatures. Consult the datasheet and application notes for more information on high-temperature operation.
  • Texas Instruments provides a troubleshooting guide in the AMC1303E0520DWVR datasheet and application notes, which includes steps to identify and resolve common issues. Additionally, the TI E2E community and support forums can provide additional resources and assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC1303E0520DWVR Overview

Use the download button to access the AMC1303E0520DWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
