Texas Instruments provides a recommended PCB layout in the AMC1303E2510DWV evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The AMC1303E2510DWV does not require calibration, as it is a self-calibrating device. However, it is recommended to follow the application guidelines in the datasheet to ensure optimal performance, and to use the internal offset and gain calibration registers to fine-tune the device's performance if necessary.
The maximum cable length for the AMC1303E2510DWV's differential output depends on the specific application and the signal frequency. As a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 10 inches) and using a shielded twisted-pair cable with a characteristic impedance of 100 ohms to ensure signal integrity.
Yes, the AMC1303E2510DWV can be used in a multi-channel application. To synchronize the channels, Texas Instruments recommends using a common clock source for all channels, and ensuring that the channels are properly aligned using the device's synchronization pins (SYNCIN and SYNCOUT).
The AMC1303E2510DWV has built-in overvoltage protection (OVP) and undervoltage protection (UVP) on its input pins. However, it is still recommended to use external protection circuitry, such as voltage clamps or transient voltage suppressors, to protect the device from excessive voltage transients or faults.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1303E2510DWV Overview

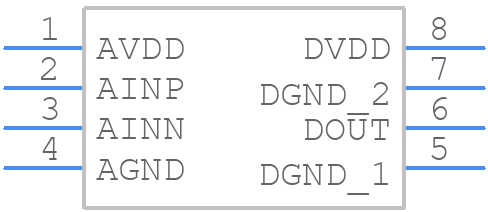

Use the download button to access the AMC1303E2510DWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
