Texas Instruments provides a recommended PCB layout in the AMC1303M0510DWV datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends following good PCB design practices, such as using a solid ground plane, separating analog and digital signals, and using shielding to minimize electromagnetic interference (EMI).
To ensure accurate voltage measurement, it's essential to consider the effects of temperature and voltage drift. The AMC1303M0510DWV has a built-in temperature sensor, which can be used to compensate for temperature-related errors. Additionally, TI recommends using a high-precision voltage reference and calibrating the device during production to minimize voltage drift. It's also important to follow proper PCB design and layout practices to minimize thermal gradients and noise.
The maximum allowed input voltage for the AMC1303M0510DWV is ±650 mV, which is the absolute maximum rating. Exceeding this voltage can damage the device or affect its accuracy and reliability. TI recommends operating the device within the recommended input voltage range of ±500 mV to ensure optimal performance and reliability.
To implement overvoltage protection for the AMC1303M0510DWV, TI recommends using external protection circuits, such as voltage clamps or transient voltage suppressors (TVS). These circuits can be designed to limit the input voltage to within the recommended range, protecting the device from damage. TI provides examples of recommended protection circuits in the AMC1303M0510DWV datasheet and application notes.
The recommended power-up sequence for the AMC1303M0510DWV is to power up the analog supply (AVDD) before the digital supply (DVDD). This ensures that the analog circuitry is properly biased before the digital circuitry is enabled. Following the recommended power-up sequence helps to prevent latch-up, ensures proper device operation, and minimizes the risk of damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1303M0510DWV Overview

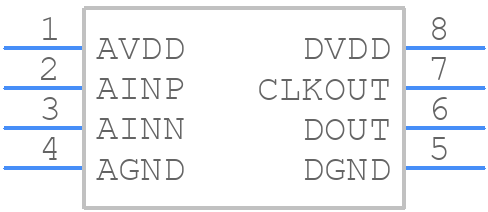

Use the download button to access the AMC1303M0510DWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
