Texas Instruments provides a recommended PCB layout in the AMC1303M0510DWVR datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends following good PCB design practices, such as using a solid ground plane, separating analog and digital signals, and using shielding to minimize electromagnetic interference (EMI).
To ensure accurate voltage measurement, it's essential to consider the effects of temperature and voltage drift. The AMC1303M0510DWVR has a built-in temperature sensor, which can be used to compensate for temperature-related errors. Additionally, TI recommends using a high-precision voltage reference and calibrating the device during production to minimize voltage drift. It's also important to follow proper PCB design and layout practices to minimize thermal gradients and noise.
The AMC1303M0510DWVR has a maximum allowed input voltage of 1000 Vrms, and it's designed to handle overvoltage conditions up to 1500 Vrms for a short duration. However, it's essential to follow proper safety precautions and design guidelines to ensure the device operates within its specified limits. TI recommends using overvoltage protection circuits and surge protectors to prevent damage to the device and ensure reliable operation.
The AMC1303M0510DWVR provides galvanic isolation between the high-voltage input and the low-voltage output, which is essential for safety and reliability. To maintain this isolation, TI recommends using a proper isolation barrier, such as a creepage distance of at least 2 mm, and ensuring that the PCB layout and design meet the necessary safety standards. Additionally, it's essential to follow proper handling and assembly procedures to prevent damage to the device.
The AMC1303M0510DWVR has a typical response time of 1 μs, which is relatively fast compared to other isolated amplifiers. This fast response time enables the device to accurately track high-frequency signals and provide reliable performance in demanding applications. However, the response time may vary depending on the specific application and system design. TI recommends consulting the datasheet and application notes for more information on the device's response time and its impact on system performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1303M0510DWVR Overview

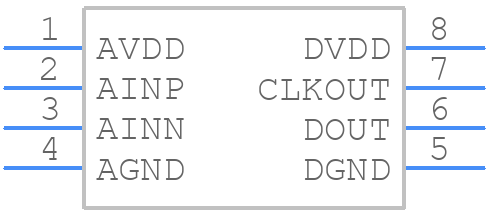

Use the download button to access the AMC1303M0510DWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
