A good PCB layout for the AMC1303M2510DWV involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision resistor network to improve accuracy.
The AMC1303M2510DWV has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Also, consider using thermal simulation tools to model the thermal performance of your design.
The AMC1303M2510DWV's internal oscillator can be used as a clock source, but it may not provide the same level of accuracy as an external clock source. If using an external clock source, ensure it meets the device's clock input requirements, and consider using a clock buffer to improve signal integrity.
To ensure electromagnetic compatibility, follow proper PCB layout and shielding techniques, use a metal shield around the device, and consider using EMI filters or common-mode chokes to reduce emissions. Additionally, ensure that the device is properly decoupled and that the power supply is well-regulated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1303M2510DWV Overview

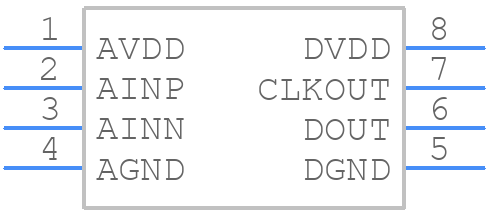

Use the download button to access the AMC1303M2510DWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
