AMC1304L05DWR - Texas Instruments

Description: 1-Channel Single ADC Delta-Sigma 20Msps 16-bit Serial LVDS 16-Pin SOIC T/R

Download AMC1304L05DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

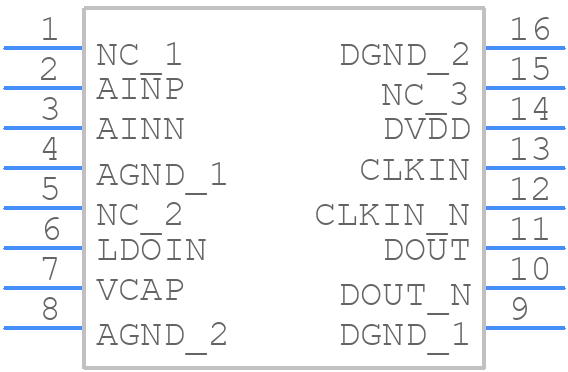

AMC1304L05DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1304L05DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
AMC1304L05DWR - Texas Instruments - 3D model - Small Outline Packages - DW0016B
click to zoom

AMC1304L05DWR Details

  • Manufacturer Part Number:

    AMC1304L05DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 50mV

  • Analog Input Voltage-Max:

    0.0625 V

  • Analog Input Voltage-Min:

    -0.0625 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.006103%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    20 MHz

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AMC1304L05DWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1304 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, the TI website has a PCB layout guide that provides more detailed information on how to design a PCB for the AMC1304.
  • The selection of input filter components depends on the specific application and the frequency range of interest. Texas Instruments provides a filter design tool on their website that can help engineers select the correct components based on their specific requirements. Additionally, the datasheet provides guidelines for selecting the correct filter components.
  • The maximum allowed voltage on the AMC1304L05DWR's input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage can damage the device. It's essential to ensure that the input voltage does not exceed this limit to prevent damage to the device.
  • The AMC1304L05DWR requires calibration to ensure accurate measurements. Texas Instruments provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers to achieve the desired accuracy. Additionally, TI provides a calibration tool that can simplify the calibration process.
  • The typical power consumption of the AMC1304L05DWR is around 12mW at a supply voltage of 3.3V and a clock frequency of 20MHz. However, the actual power consumption may vary depending on the specific application and operating conditions.
