AMC1304L25DW - Texas Instruments

Description: Reinforced Isolated Modulator with LDO Regulator, ±250mV Input, and LVDS Interface

Download AMC1304L25DW Model

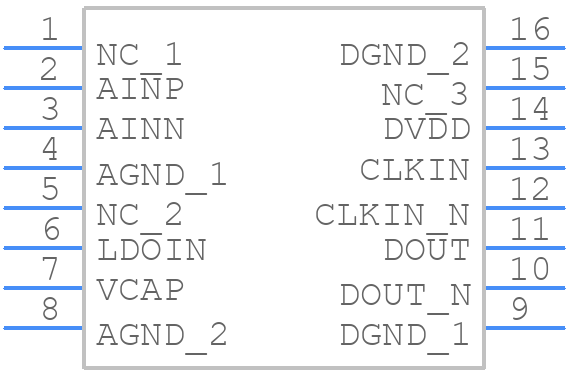

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AMC1304L25DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
AMC1304L25DW - Texas Instruments  - 3D model - Small Outline Packages - DW0016B
click to zoom

AMC1304L25DW Details

  • Manufacturer Part Number:

    AMC1304L25DW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 15 V FOR LDO

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AMC1304L25DW Frequently Asked Questions (FAQs)

  • A good PCB layout for the AMC1304L25DW involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision resistor network to improve accuracy.
  • Operating the AMC1304L25DW beyond the recommended temperature range may affect its performance, accuracy, and reliability. The device may experience reduced accuracy, increased noise, and potentially even damage or failure. It is essential to ensure the device operates within the recommended temperature range for optimal performance and reliability.
  • The AMC1304L25DW requires a stable clock source for proper operation. Use a high-quality clock source, such as a crystal oscillator or a high-precision clock generator, and ensure the clock frequency is within the recommended range (typically 10-50 MHz). Additionally, consider using a clock synchronization circuit to ensure proper synchronization between the AMC1304L25DW and other devices in the system.
  • To mitigate EMI and RFI, use proper shielding, grounding, and filtering techniques. Ensure the AMC1304L25DW is placed in a shielded enclosure, and use ferrite beads or common-mode chokes to filter out high-frequency noise. Additionally, consider using a low-pass filter or a pi-filter to reduce EMI and RFI emissions.
