Texas Instruments provides a recommended PCB layout in the AMC1304 datasheet, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance. Additionally, TI also provides a PCB layout checklist in the device's user guide.
The selection of input filter components depends on the specific application requirements, such as the frequency range of interest, noise levels, and signal amplitude. TI provides guidelines for selecting input filter components in the AMC1304 datasheet, including a filter design tool and example filter circuits.
The maximum allowed voltage on the AMC1304L25QDWRQ1's analog input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage can damage the device. It's essential to ensure that the input signal amplitude does not exceed this limit to prevent damage or incorrect operation.
The AMC1304L25QDWRQ1 requires calibration to ensure accurate measurements. TI provides a calibration procedure in the device's datasheet, which includes steps for offset and gain calibration. Additionally, TI also provides a calibration tool and example code to simplify the calibration process.
The recommended power-up sequence for the AMC1304L25QDWRQ1 is to power up the analog supply voltage (VCC) before the digital supply voltage (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent incorrect operation or damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1304L25QDWRQ1 Overview

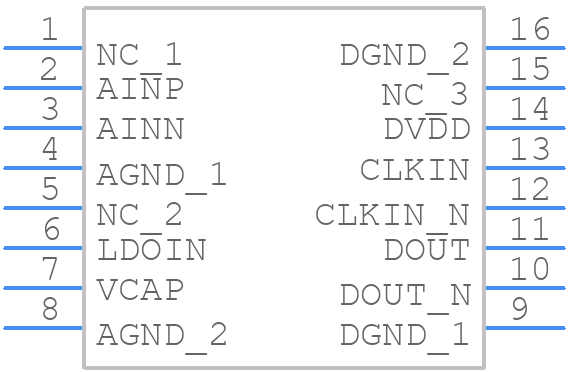

Use the download button to access the AMC1304L25QDWRQ1 schematic symbol, PCB footprint, and 3D model.
