AMC1304M05QDWRQ1 - Texas Instruments

Description: Automotive Reinforced Isolated Modulator With LDO Regulator, ±50mV Input, and CMOS Interface

Download AMC1304M05QDWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

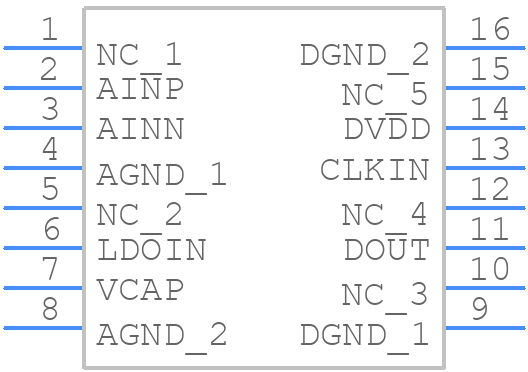

AMC1304M05QDWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1304M05QDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
AMC1304M05QDWRQ1 - Texas Instruments - 3D model - Small Outline Packages - DW0016B
click to zoom

AMC1304M05QDWRQ1 Details

  • Manufacturer Part Number:

    AMC1304M05QDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-02-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 50mV

  • Analog Input Voltage-Max:

    0.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0076%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    20 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AMC1304M05QDWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1304M05QDWRQ1 evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AMC1304M05QDWRQ1 does not require calibration, as it is a pre-calibrated device. However, the user's guide provides guidelines for verifying the device's performance and adjusting the gain and offset if necessary.
  • The AMC1304M05QDWRQ1 is rated for operation from -40°C to 125°C, but the device's accuracy and performance may degrade at extreme temperatures. Consult the datasheet for more information on temperature-related specifications.
  • While the AMC1304M05QDWRQ1 is specified for 5V operation, it can operate from a 4.5V to 5.5V supply voltage range. However, the device's performance and accuracy may be affected at voltages outside the recommended range. Consult the datasheet for more information on power supply requirements.
  • To protect the AMC1304M05QDWRQ1 from EMI, use proper PCB layout and shielding techniques, such as placing the device in a shielded enclosure or using EMI-absorbing materials. Additionally, ensure that the device's input and output signals are properly filtered and terminated.
