A good PCB layout for the AMC1304M25QDWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers to achieve the desired output. Additionally, consider using an external calibration circuit or a calibration module to simplify the process.
The AMC1304M25QDWRQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Also, consider using thermal simulation tools to model the thermal performance of your design.
To minimize EMI and ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter the power supply. Additionally, consider using a PCB with a dedicated ground plane and a shielded cable for the analog input signals.
The AMC1304M25QDWRQ1 is designed to be radiation-hard and latch-up immune, but it's essential to follow proper design and layout guidelines to ensure reliable operation in harsh environments. Consider using radiation-hardened components, and follow the guidelines outlined in the datasheet for designing a radiation-tolerant system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1304M25QDWRQ1 Overview

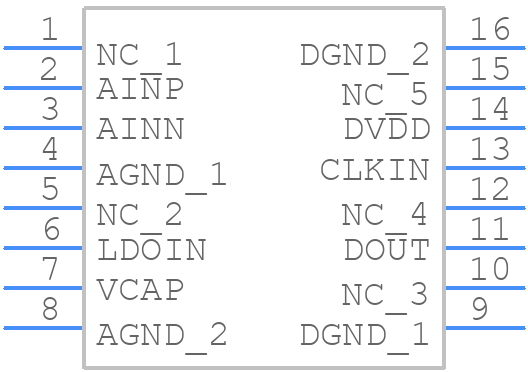

Use the download button to access the AMC1304M25QDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
