Texas Instruments provides a recommended PCB layout in the AMC1305 datasheet, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance. Additionally, the TI website has a PCB layout guide that provides more detailed information.
The selection of input filter components depends on the specific application requirements, such as the frequency range of interest, noise levels, and signal amplitude. Texas Instruments provides guidance on input filter design in the AMC1305 datasheet and application notes, including equations and examples to help engineers select the correct components.
The maximum allowed common-mode voltage for the AMC1305L25QDWRQ1 is ±250 mV, as specified in the datasheet. Exceeding this limit can affect the device's performance and accuracy.
The AMC1305L25QDWRQ1 is specified to operate from –40°C to 125°C, but the device's performance and accuracy may degrade at higher temperatures. Engineers should consult the datasheet and application notes for guidance on using the device in high-temperature environments and consider the potential impact on system performance.
The AMC1305L25QDWRQ1 requires calibration to ensure accurate performance. Texas Instruments provides calibration procedures and equations in the datasheet and application notes, including guidance on how to perform offset and gain calibration. Engineers should follow these procedures to ensure the device is properly calibrated for their specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1305L25QDWRQ1 Overview

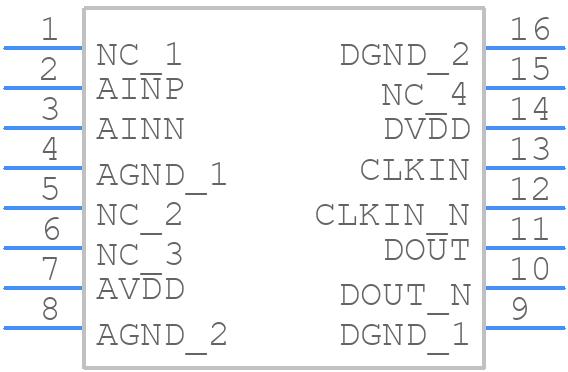

Use the download button to access the AMC1305L25QDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
