A good PCB layout for the AMC1306M05DWV involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain to achieve the desired output. Additionally, consider using an external calibration circuit or a microcontroller to automate the calibration process.
The AMC1306M05DWV has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Additionally, consider using thermal simulation tools to model the thermal performance of the device in your specific application.
To minimize EMI and ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter the power supply. Additionally, consider using a PCB layout that minimizes loop areas and uses a solid ground plane to reduce radiation.
For high-reliability or safety-critical applications, consider using redundant or duplicated circuits, implementing error detection and correction mechanisms, and following relevant industry standards such as IEC 61508 or DO-254. Additionally, ensure that the device is properly derated for the specific application, and consider using a device with a higher temperature rating or a redundant power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1306M05DWV Overview

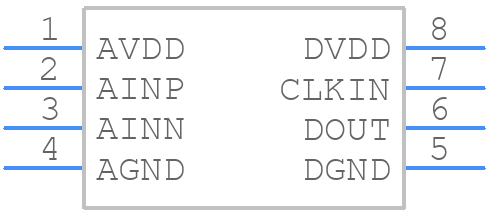

Use the download button to access the AMC1306M05DWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
