Please enter a minimum 3 letters or numbers
Technical Content
Part Image

AMC130M02DFMR - Texas Instruments

Description: Analog to Digital Converters - ADC Two-channel, simultaneously-sampling, 16-bit, isolated delta-sigma ADC 20-SOIC -40 to 125

Download AMC130M02DFMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

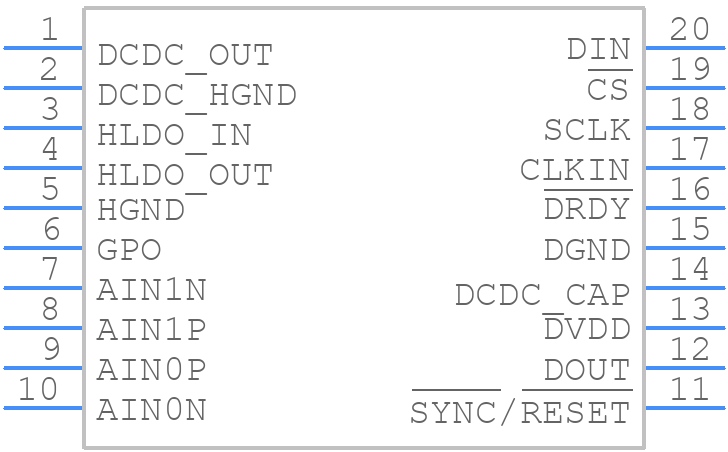

AMC130M02DFMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC130M02DFMR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DFM0020A
click to zoom
3D Models
AMC130M02DFMR - Texas Instruments - 3D model - Small Outline Packages - DFM0020A
click to zoom

AMC130M02DFMR Details

  • Manufacturer Part Number:

    AMC130M02DFMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    1.2 V

  • Analog Input Voltage-Min:

    -1.2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.83 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.064 MHz

  • Seated Height-Max:

    3.55 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AMC130M02DFMR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC130M02DFMR evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AMC130M02DFMR can be configured for differential or single-ended input modes by setting the appropriate pins (e.g., DIFF/SE and INMODE) and using the corresponding input circuitry. Refer to the datasheet and application notes for specific configuration details.
  • The maximum input voltage range for the AMC130M02DFMR is ±250 mV, and exceeding this range can affect the device's accuracy. It's essential to ensure that the input voltage stays within the recommended range to maintain the device's specified performance.
  • Calibration of the AMC130M02DFMR involves adjusting the internal offset and gain to compensate for device variations and environmental factors. Texas Instruments provides calibration procedures and guidelines in the datasheet and application notes.
  • The AMC130M02DFMR has a specified operating temperature range of -40°C to 125°C. Temperature affects the device's accuracy, gain, and offset. It's essential to ensure proper thermal management, such as heat sinking and airflow, to maintain the device's performance within the specified temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC130M02DFMR Overview

Use the download button to access the AMC130M02DFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to AMC130M02DFMR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
