- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AMC1336DWVR
- Part Number AMC1336DWVR
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DWV Package 8-Pin SOIC
- Released Date Nov 28, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AMC1336DWVR Details
-
Manufacturer Part Number:
AMC1336DWVR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Date Of Intro:
2019-08-09
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
AMC1336DWVR Frequently Asked Questions (FAQs)
-
A good PCB layout for the AMC1336DWVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
-
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known voltage and current to the device and adjusting the internal calibration registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input signals are within the recommended range.
-
The AMC1336DWVR is specified to operate up to 125°C, but high temperatures can affect its accuracy and reliability. To mitigate potential issues, ensure good thermal design and heat dissipation, use a heat sink if necessary, and consider using a temperature sensor to monitor the device temperature. Additionally, consider using a device with a higher temperature rating if the application requires it.
-
The AMC1336DWVR's output data can be handled using a microcontroller or FPGA, and the choice of 16-bit or 24-bit output mode depends on the application's requirements. The 16-bit mode provides faster conversion rates but lower resolution, while the 24-bit mode provides higher resolution but slower conversion rates. Consider the trade-offs between speed and resolution when selecting the output mode.
-
To ensure EMI and EMC compliance, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the device is operated within its specified frequency range. Additionally, consider using a device with built-in EMI filtering, such as the AMC1336DWVR, and follow the guidelines outlined in the datasheet and relevant industry standards.
Trust Checks
Community Provided
System Verified
Community Approved
AMC1336DWVR Overview

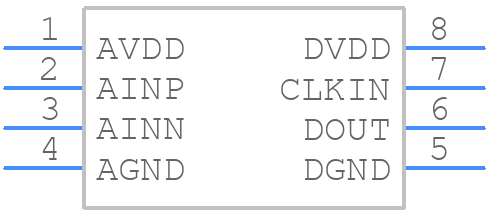

Use the download button to access the AMC1336DWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Other Signal Circuits
