ALSO REQUIRE (DIGITAL CONTROLLER SIDE) SUPPLY FORM 2.7V TO 5.5V
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
7.5 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.45
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
2.8 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
5.85 mm
AMC1336QDWVRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for the AMC1336QDWVRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision resistor network to improve accuracy.
The AMC1336QDWVRQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Additionally, consider using thermal simulation tools to model the thermal performance of your design.
The AMC1336QDWVRQ1's digital output data can be handled using a microcontroller or FPGA. Consider using a FIFO or buffer to handle the data stream, and implement digital filtering techniques such as averaging or median filtering to reduce noise and improve accuracy.
To ensure EMI and EMC compliance, follow proper PCB layout and design practices, use shielding and filtering as necessary, and consider using a metal enclosure or shielded cables. Additionally, perform EMI and EMC testing to ensure compliance with regulatory standards such as FCC, CE, and CISPR.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1336QDWVRQ1 Overview

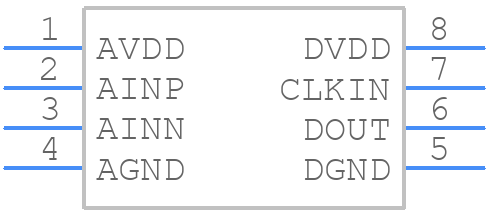

Use the download button to access the AMC1336QDWVRQ1 schematic symbol, PCB footprint, and 3D model.
