AMC1351DWV - Texas Instruments

Description: Isolation Amplifiers 0-V to 5-V input, precision reinforced isolated amplifier for voltage sensing 8-SOIC -40 to 125

Download AMC1351DWV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

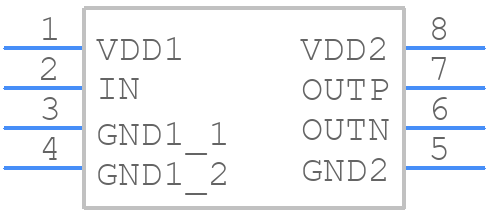

Symbol
AMC1351DWV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1351DWV - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - AMC1351DWV-
click to zoom
3D Models
AMC1351DWV - Texas Instruments - 3D model - Small Outline Packages - AMC1351DWV-
click to zoom

AMC1351DWV Details

  • Manufacturer Part Number:

    AMC1351DWV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Bandwidth (3dB)-Nom:

    0.3 MHz

  • Common Mode Voltage-Max:

    1.49 V

  • Input Offset Voltage-Max:

    1500 µV

  • Isolation Voltage-Min:

    1500 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    9.3 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    0.275

  • Width:

    5.85 mm

AMC1351DWV Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1351DWV datasheet (Section 10.1) and in the AMC1351DWV Evaluation Module User's Guide (SLAU575). It's essential to follow these guidelines to minimize noise and ensure optimal performance.
  • The AMC1351DWV has several configuration options. Refer to the datasheet (Section 7) and the AMC1351DWV Configuration and Programming Guide (SLAU576) for detailed information on configuring the device for your specific application.
  • The maximum allowed voltage on the VREF pin is 5.5V. Exceeding this voltage can damage the device. The VREF voltage affects the device's performance, particularly the accuracy and linearity of the output. Refer to the datasheet (Section 6.3) for more information.
  • The AMC1351DWV has a maximum junction temperature (TJ) of 150°C. Ensure proper thermal design and heat dissipation to prevent overheating. Refer to the datasheet (Section 10.2) and the Thermal Design and Layout Considerations application report (SLVA462) for guidance.
  • Texas Instruments recommends using 0.1-μF and 10-μF decoupling capacitors for the AMC1351DWV. Place them as close as possible to the device's power pins, following the recommended PCB layout guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC1351DWV Overview

Use the download button to access the AMC1351DWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13, or try a keyword search, such as Isolation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
