AMC3306M25DWER - Texas Instruments

Description: Data Acquisition ADCs/DACs - Specialised +/-250-mV input, precision reinforced isolated modulator with integrated DC/DC converter 16-SOIC -40 to 125

Download AMC3306M25DWER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

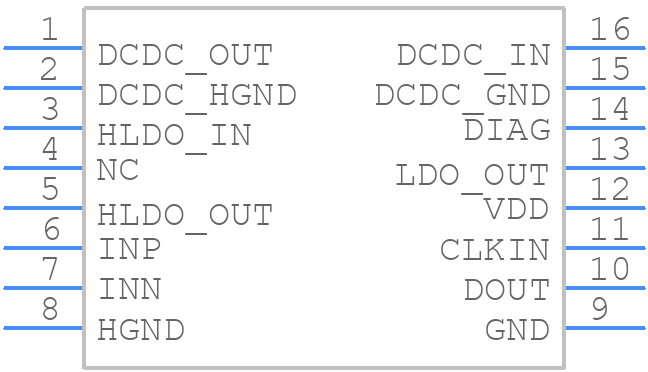

AMC3306M25DWER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC3306M25DWER - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A 2021
click to zoom
3D Models
AMC3306M25DWER - Texas Instruments - 3D model - Small Outline Packages - DW0016A 2021
click to zoom

AMC3306M25DWER Details

  • Manufacturer Part Number:

    AMC3306M25DWER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-07-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 250mV

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.006103515%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    21 MHz

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    31 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AMC3306M25DWER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC3306M25DWER evaluation module user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • To ensure accurate current measurement, it is essential to follow proper layout and routing guidelines, use a low-impedance current sense resistor, and ensure that the AMC3306M25DWER is operated within its specified temperature range. Additionally, calibration and offset correction may be necessary to achieve high accuracy.
  • The maximum allowed voltage on the AMC3306M25DWER's input pins is 6.5V, which is the absolute maximum rating. However, the recommended operating voltage range is 3.0V to 5.5V to ensure reliable operation and prevent damage to the device.
  • The AMC3306M25DWER is rated for operation up to 125°C, but its accuracy and performance may degrade at high temperatures. It is essential to consider the device's temperature coefficient and ensure that the system is designed to operate within the specified temperature range.
  • The AMC3306M25DWER provides a digital output that can be easily interfaced with a microcontroller or FPGA using a standard SPI or I2C interface. Texas Instruments provides example code and interface guidelines in the AMC3306M25DWER datasheet and application notes.
