AVS106M2AF24T-F - Cornell Dubilier

Description: Aluminium Electrolytic Capacitors - SMD 100V 10uF AEC-Q200

Download AVS106M2AF24T-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AVS106M2AF24T-F - Cornell Dubilier - PCB symbol
click to zoom

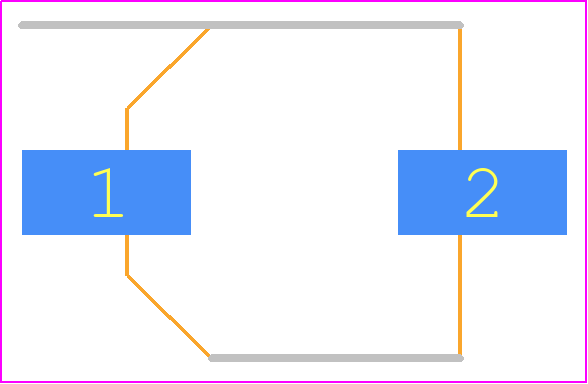

PCB Footprints
AVS106M2AF24T-F - Cornell Dubilier PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - case code f
click to zoom
3D Models
AVS106M2AF24T-F - Cornell Dubilier - 3D model - Capacitor Al Electrolytic - case code f
click to zoom

AVS106M2AF24T-F Details

  • Manufacturer Part Number:

    AVS106M2AF24T-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    3

  • Capacitance:

    10 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    29800 mΩ

  • Height:

    10.2 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.01 mA

  • Length:

    10 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    85 mA

  • Size Code:

    3933

  • Surface Mount:

    YES

  • Tan Delta:

    0.18

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

AVS106M2AF24T-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the AVS106M2AF24T-F is designed to withstand high-vibration environments. However, it's essential to ensure that the component is properly secured to the PCB and that the PCB is designed to absorb vibrations to prevent damage to the component.
  • The maximum allowable ripple current for the AVS106M2AF24T-F is 1.5A RMS at 100kHz. Exceeding this value may reduce the component's lifespan or cause it to fail prematurely.
  • Yes, the AVS106M2AF24T-F is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and ensure that the soldering process is optimized for lead-free soldering.
  • The typical ESR of the AVS106M2AF24T-F is 0.02 ohms. This value may vary depending on the frequency and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AVS106M2AF24T-F Overview

Use the download button to access the AVS106M2AF24T-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AVS10, or try a keyword search, such as Aluminum Electrolytic Capacitors
