A good PCB layout for the BD6221F-E2 involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place a 10nF capacitor in parallel with the output capacitor to improve the transient response. Additionally, the input voltage should be well-regulated and the input capacitor should be placed close to the IC.
The BD6221F-E2 can operate in an ambient temperature range of -40°C to 85°C. However, the junction temperature should not exceed 125°C to ensure reliable operation.
Yes, the BD6221F-E2 is suitable for high-reliability applications. It has a built-in overcurrent protection circuit and a thermal shutdown circuit to prevent damage from overheating. Additionally, it has a high MTBF (Mean Time Between Failures) of 10,000,000 hours.
The power dissipation of the BD6221F-E2 can be calculated using the formula: Pd = (Vin - Vout) x Iout + Vout x Iq, where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD6221F-E2 Overview

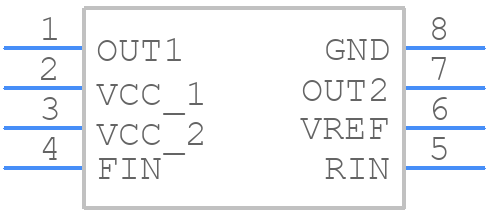

Use the download button to access the BD6221F-E2 schematic symbol, PCB footprint, and 3D model.
