Texas Instruments recommends a specific layout and placement for the BQ2004HPN to ensure proper operation and minimize noise. The datasheet provides a recommended layout diagram, and it's essential to follow it to avoid issues.
To minimize high-frequency noise, use a low-pass filter, such as a ferrite bead or a capacitor, on the VCC pin. Additionally, ensure proper grounding and decoupling of the device, and use a shielded cable for the battery connection.
The accuracy of the gas gauge function in the BQ2004HPN depends on various factors, such as the battery type, age, and temperature. However, Texas Instruments claims an accuracy of ±5% for the gas gauge function under normal operating conditions.
While the BQ2004HPN is optimized for lithium-ion batteries, it can be used with other chemistries, such as nickel-metal hydride (NiMH) or lead-acid batteries. However, the accuracy of the gas gauge function may be affected, and additional calibration may be required.
The BQ2004HPN has built-in battery protection features, such as overcharge and over-discharge protection. To implement these features, connect the PROTECT pin to a suitable external circuit, such as a FET or a relay, to control the charging and discharging of the battery.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BQ2004HPN Overview

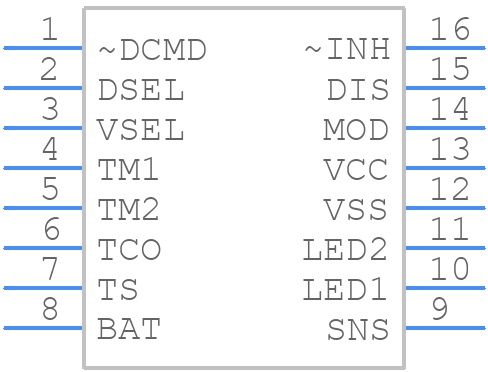

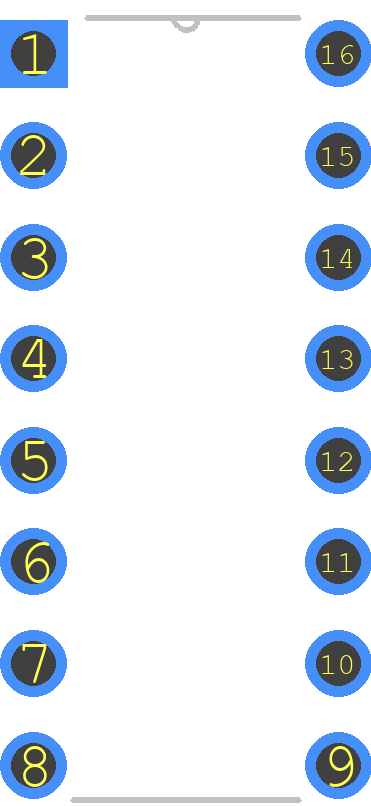

Use the download button to access the BQ2004HPN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ200,
or try a keyword search, such as Power Management Circuits
