The recommended layout and placement for the BQ2004PN involves keeping the device close to the battery, using a ground plane to reduce noise, and placing the device's power pins (VCC and GND) as close as possible to the battery's power pins. Additionally, the device's sense pins (SNS1 and SNS2) should be placed as close as possible to the battery's sense pins.
Calibration of the BQ2004PN involves setting the device's internal registers to match the characteristics of the battery being used. This can be done by following the calibration procedure outlined in the datasheet, which involves measuring the battery's voltage, current, and temperature, and then programming the device's registers accordingly.
The BQ2004PN is designed to handle currents up to 100mA, but it's recommended to limit the current to 50mA or less to ensure accurate measurements and to prevent overheating.
Yes, the BQ2004PN can be used with multiple battery chemistries, including Li-Ion, NiMH, and Lead-Acid. However, the device's internal registers may need to be reprogrammed to match the characteristics of the specific battery chemistry being used.
The BQ2004PN has built-in fault detection and protection features, including overcharge and over-discharge protection. When a fault is detected, the device will generate an interrupt signal to alert the system, and can also be configured to take corrective action, such as shutting down the system or disconnecting the battery.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2004PN Overview

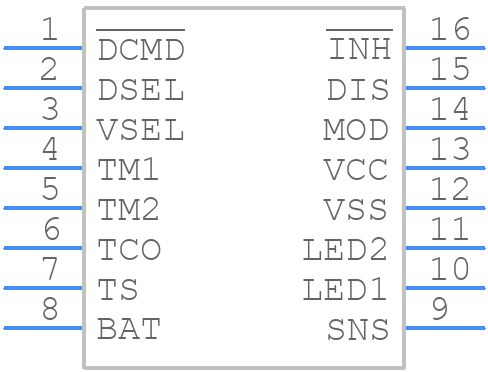

Use the download button to access the BQ2004PN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ200,
or try a keyword search, such as Power Management Circuits
