BQ2004SN - Texas Instruments

Description: Switch-mode NiCd/NiMH Battery Charger w/Negative dV, Peak Voltage Detection, dT/dt Termination

Download BQ2004SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

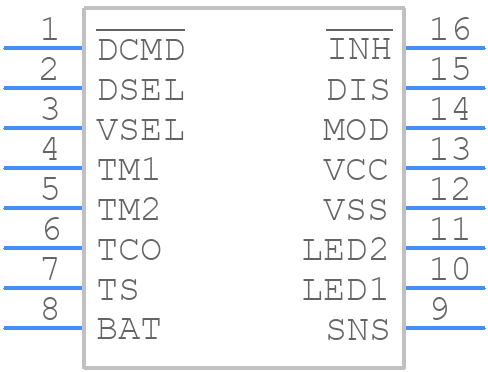

BQ2004SN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2004SN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC D16
click to zoom
3D Models
BQ2004SN - Texas Instruments - 3D model - Small Outline Packages - SOIC D16
click to zoom

BQ2004SN Details

  • Manufacturer Part Number:

    BQ2004SN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.58 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

BQ2004SN Frequently Asked Questions (FAQs)

  • The BQ2004SN requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the battery, using a solid ground plane, and keeping the input and output traces separate to minimize noise coupling.
  • The BQ2004SN has a built-in thermal shutdown feature that disables the device when it exceeds a certain temperature threshold. To handle this, ensure good thermal design, provide adequate heat sinking, and monitor the device's temperature to prevent overheating.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 10V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended to minimize power losses and ensure stable operation.
  • The BQ2004SN can be configured for different battery chemistries by adjusting the voltage detection threshold and the charge/discharge current limits. Consult the datasheet and application notes for specific configuration guidelines for your battery chemistry.
  • The BQ2004SN's trickle charge mode can help maintain battery health by preventing over-discharge. However, prolonged trickle charging can cause battery damage. Implement a timer or voltage monitoring to limit trickle charge duration and prevent overcharging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ2004SN Overview

Use the download button to access the BQ2004SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ200, or try a keyword search, such as Power Management Circuits
