Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauges: PCB Layout Considerations' (SLUA364) for optimal performance.
Calibration involves adjusting the gauge's internal parameters to match the characteristics of the specific battery being used. TI provides a calibration guide (SLUA365) that outlines the steps to follow for calibration, including setting the capacity, voltage, and temperature compensation.
The accuracy of the SOC measurement depends on various factors, including the quality of the calibration, the battery's age and health, and the operating conditions. Typically, the BQ2010SN-D107TR can provide an SOC accuracy of ±5% or better, but this may vary depending on the specific application.
Yes, the BQ2010SN-D107TR is designed to be flexible and can be used with various battery chemistries, including Li-ion, NiMH, and Lead-Acid. However, calibration may be required for each specific chemistry to ensure accurate SOC measurements.
The BQ2010SN-D107TR takes into account battery self-discharge when calculating the SOC. The device uses a combination of coulomb counting and voltage-based SOC estimation to provide an accurate measurement of the battery's state of charge, even when the battery is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2010SN-D107TR Overview

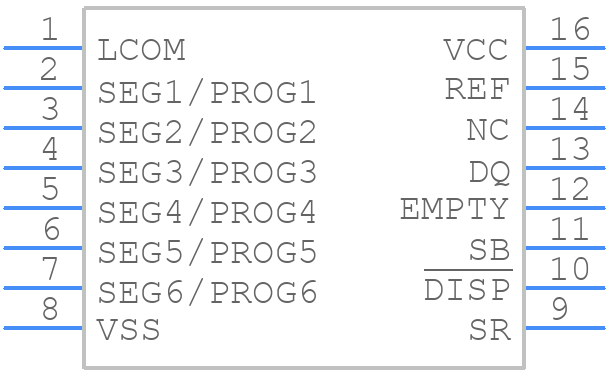

Use the download button to access the BQ2010SN-D107TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ201,
or try a keyword search, such as Power Management Circuits
